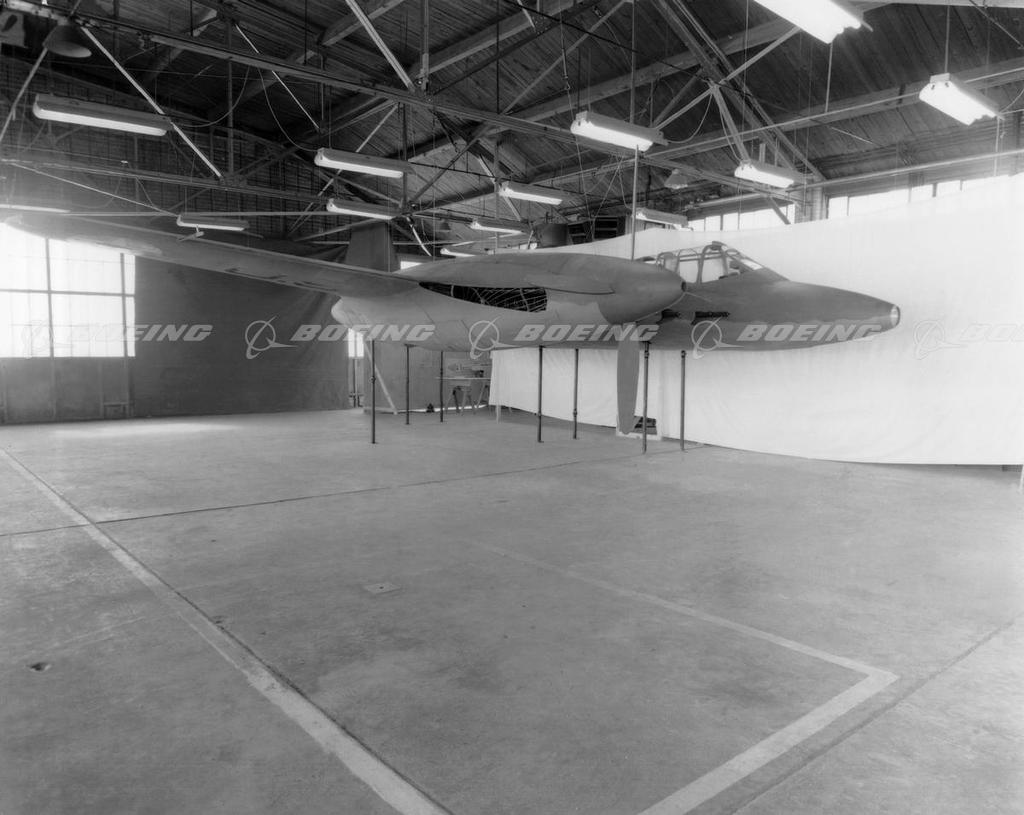

McDonnell XP-67 Bat in Assembly

The XP-67 was McDonnell's only propeller-powered fighter. On Aug. 14, 1941, the U.S. Army Air Forces placed its first order with the tiny McDonnell Aircraft Corp. for two prototypes of a novel, twin-engine, long-range fighter with a pressurized cabin. Engineers tried to improve the airplane's aerodynamics by merging the center fuselage with rear portions of the engine nacelles. This resulted in the XP-67's unique bat-like shape. The turbo-supercharged 12-cylinder, inverted-V, liquid-cooled engines would be housed in long nacelles and would drive four-blade propellers in opposite directions. They were to maximize the use of exhaust to increase engine thrust. The XP-67 was completed in St. Louis, Mo., in December 1943, but the temperamental engines caused the airplane's first flight to last only six minutes. Problems continued with the engines, and the XP-67's top speed was 200 mph slower than required. The second prototype was never finished.
 Add to lightbox
 Add to cart
Unique identifier BI224411
Boeing ID d8e-524
Type Image
Size 2961px × 2356px   6MB
License type RM
Keywords
1940s
airplanes
day
factories
fighters
ground shots
half-length views
hangars
historic production status
interiors
manufacturing
military
military livery
monoplanes
nobody
one of a kind aircraft
photos
propeller planes
prototypes
right front views
scanned from film negative
vintage / retro
