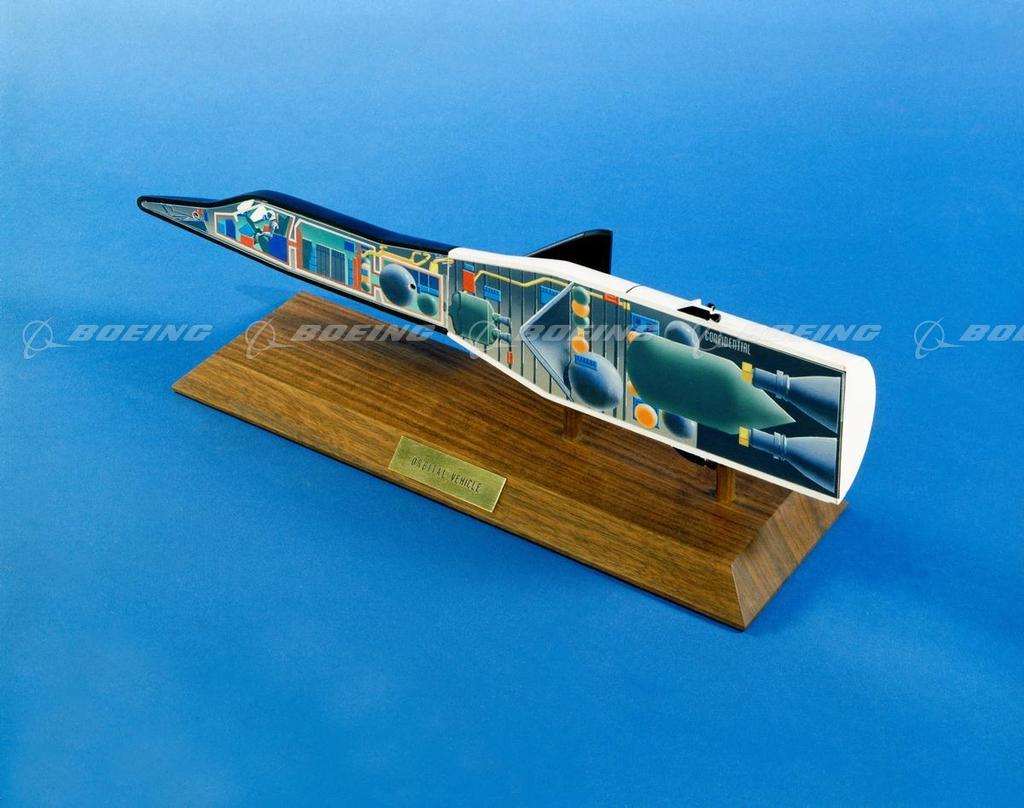

Cutaway Model of the Standard Dyna Soar
The Dyna-Soar, designed to be a 35.5-foot piloted reusable space vehicle, had a sharply swept delta 20.4-foot-span wing and a graphite and zirconia composite nose cap and used three retractable struts for landing. Eleven manned flights were to be launched from Cape Canaveral Fla., starting in November 1964. However, the U.S. government canceled the program on Dec. 10, 1963, because Dyna-Soar had no viable military mission and was too expensive for a research vehicle.
Add to lightbox
Add to cart
Unique identifier
BI222609
Boeing ID
2a130262
Type
Size
5329px × 4207px 64MB
License type
RM
