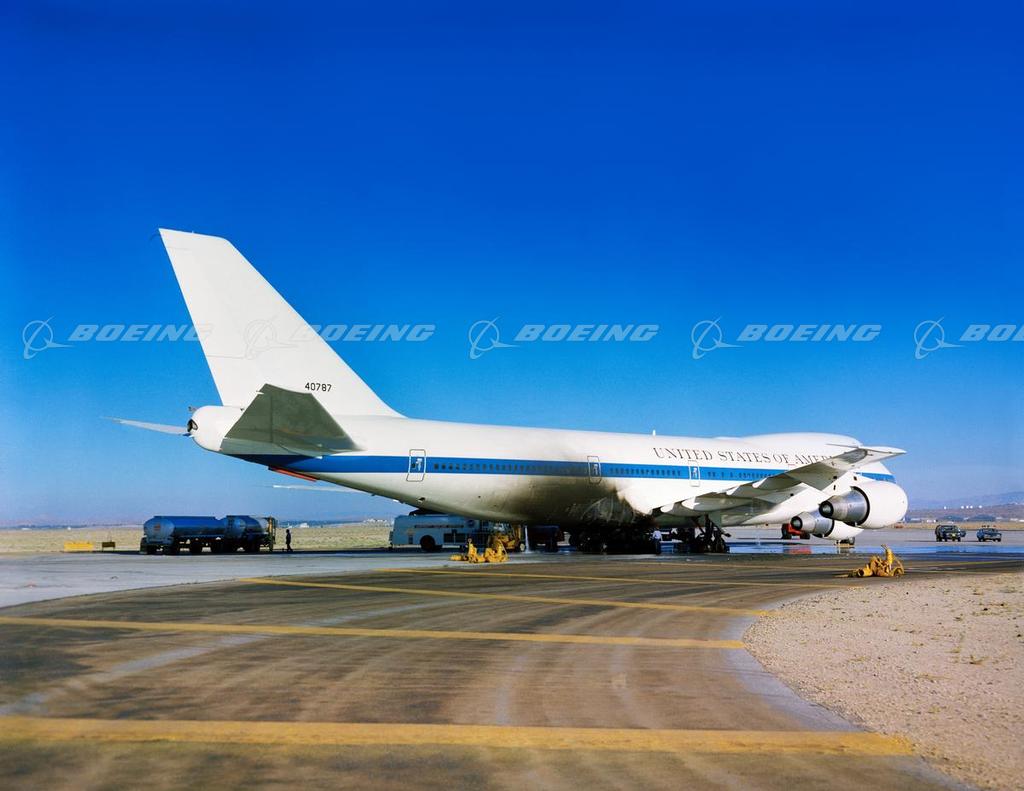

E-4B Advanced Airborne Command after Brake Test
A comprehensive certification flight-test program includes wet-runway, low- and moderate-energy rejected takeoffs (RTO) and performance landings. A maximum-energy RTO is a dramatic test that involves accelerating an airplane with fully worn brakes to a takeoff speed of nearly 200 mph, and bringing it to a complete stop using only the brakes and the wing spoilers. Engine thrust reversers are not used to help slow down the airplane in this test. The brakes glow orange-red and reach temperatures of more than 3,500 degrees Fahrenheit from the energy absorbed while halting the airplane. Shortly after the stop, wheel fuse plugs melt to safely release tire pressure.
Add to lightbox
Add to cart
Unique identifier
BI223383
Boeing ID
fa92368
Size
3300px × 2550px 24MB
License type
RM
Keywords
1970s
airborne command
airplanes
blue
blue skies
brakes
clear skies
copy space
day
deserts
exteriors
full body views
ground shots
jets
landing gears
military
military livery
monoplanes
nobody
out of production
photos
right rear views
safety
sunshine
tarmac
testing
text
vivid color
white
