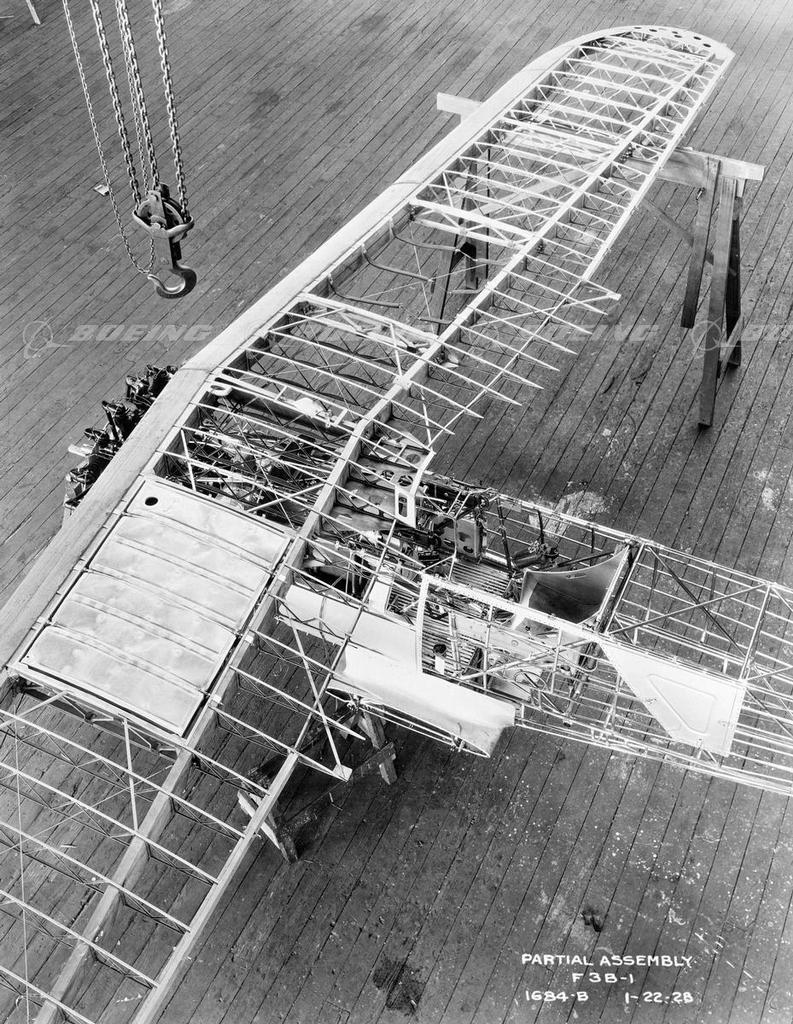

Partial Assembly, F3B-1
The prototype for the F3B-1 fighter was the XF3B-1 (Model 74), but after Navy tests, the Model 74 was sent back to the factory and rebuilt as the F3B-1 (Model 77), with completely redesigned landing gear, wings, and tail unit. It could be used either with landing gear or with a single float. The F3B-1's ailerons and tail surfaces used an entirely new method of semimonocoque, all-metal construction in which added stiffness was provided by a corrugated covering. In this type of construction, a metal skin is stretched over a light frame. Semimonocoque construction proved so satisfactory that it was used for all subsequent Boeing biplane fighters. In all other respects, the F3B-1 was a conventional design with a metal tubular frame, built-up wood wing spars and plywood ribs, and a fabric covering.
Add to lightbox
Add to cart
Unique identifier
BI210668
Boeing ID
1684b
Type
Size
3950px × 5100px 19MB
License type
RM
Keywords
1920s
aerial views
airplanes
biplanes
bombers
cockpits
complexity
F3B-1 (Model 77)
factories
fighters
fuselages
grid patterns
ground shots
hangars
historic production status
interiors
manufacturing
military
photos
Plant I
propeller planes
repetition
right side views
structural systems
text
three-quarter length views
viewed from above
vintage / retro
