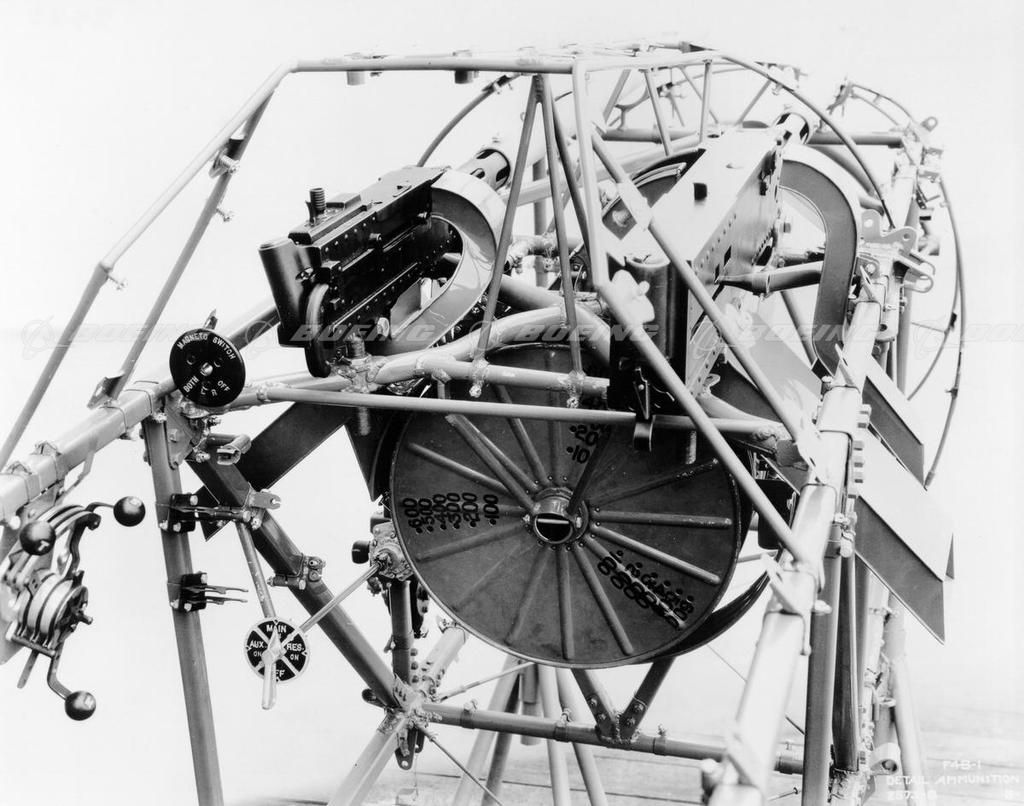

F4B-1 Ammunition Reel and Guns Mounted on Frame
Early in 1928, Boeing built two new fighter biplanes using bolted aluminum tubing for the fuselage's inside structure, rather than welded steel tubing, typical of earlier models. Later versions had aluminum covering the fuselage rather than fabric or wood. Model 83, designed for the Navy, had a hook-type arrester so that it could land on aircraft carriers. Its production version was designated F4B. The Model 89, built for the Army as the P-12, had a rack that could hold a 500-pound bomb.
Add to lightbox
Add to cart
Unique identifier
BI229767
Boeing ID
2573b
Type
Size
2892px × 2277px 6MB
License type
RM
Keywords
1920s
airplanes
ammunition/weapons systems
biplanes
close-ups
day
detail views
F4B/P-12 series
F4B-1 (Model 99)
fighters
ground shots
historic production status
interiors
manufacturing
military
photos
Plant I
rear views
text
vintage / retro
