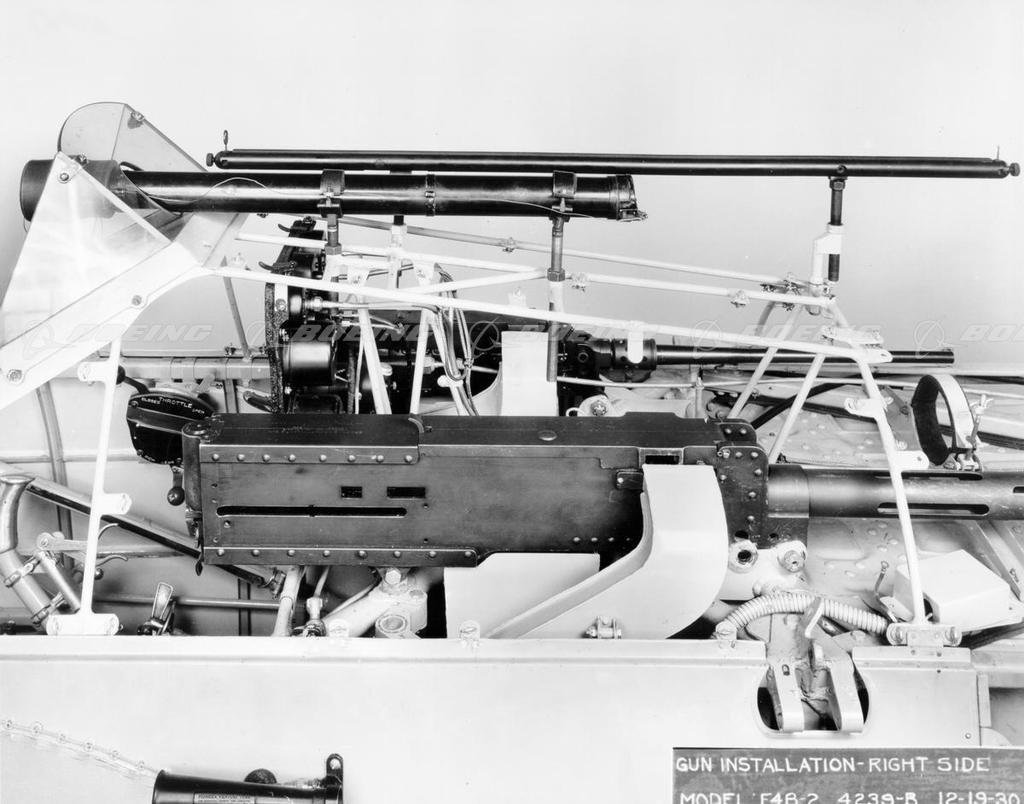

F4B-2 Right Side Gun Installation
Early in 1928, Boeing built two new fighter biplanes using bolted aluminum tubing for the fuselage's inside structure, rather than welded steel tubing, typical of earlier models. Later versions had aluminum covering the fuselage rather than fabric or wood. Model 83, designed for the Navy, had a hook-type arrester so that it could land on aircraft carriers. Its production version was designated F4B. The Model 89, built for the Army as the P-12, had a rack that could hold a 500-pound bomb.
Add to lightbox
Add to cart
Unique identifier
BI229787
Boeing ID
4239b
Type
Size
2904px × 2280px 6MB
License type
RM
Keywords
1920s
airplanes
ammunition/weapons systems
biplanes
close-ups
day
detail views
fighters
ground shots
historic production status
interiors
manufacturing
military
nobody
photos
power
propeller planes
right side views
scanned from film negative
text
vintage / retro
