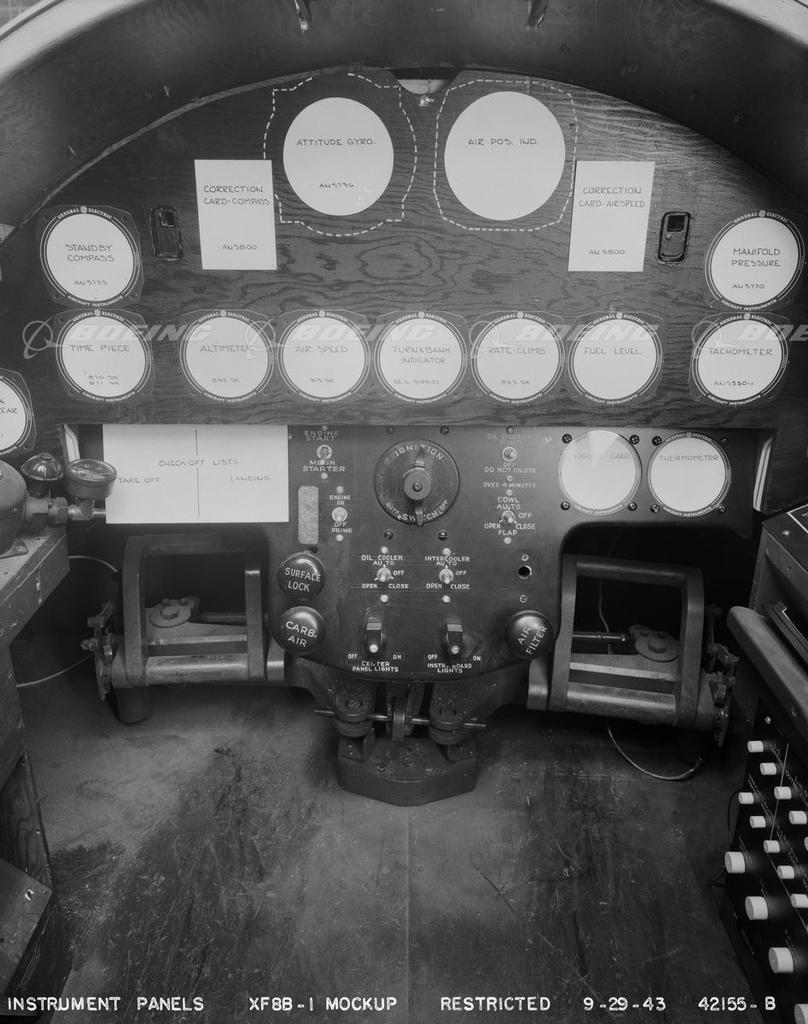

XF8B-1 Mockup Cockpit

The XF8B-1 fighter-bomber was the heaviest carrier-based airplane built before the end of World War II. The XF8B-1 could be flown as a torpedo bomber and, because of its single-seat configuration, could also be used as a fighter. Because of its size and great horsepower, the XF8B-1 used an unusual dual six-blade contrarotating propeller. It carried bombs internally and extra fuel externally, and its six machine guns were mounted inside the folding wings.
 Add to lightbox
 Add to cart
Unique identifier BI219420
Boeing ID 42155b
Type Image
Size 4162px × 5272px   20MB
License type RM
Keywords
1940s
airplanes
bombers
close-ups
cockpits
control systems
detail views
fighters
ground shots
historic production status
instrument panels
interiors
military
monoplanes
multirole
nobody
photos
propeller planes
prototypes
symmetry
text
vintage / retro
