767-400ER Test Equipment

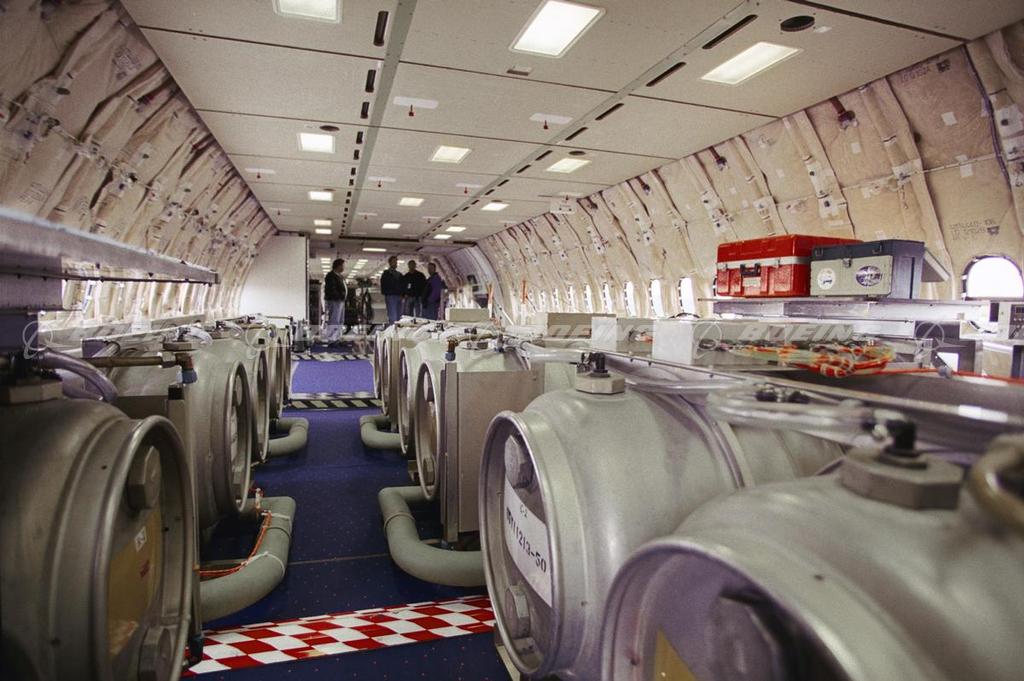

In place of passenger seats, carpets and stow bins, the first 767-400ER(extended range), designated VQ001, is furnished with 26,000 pounds of flight test equipment. The most noticeable fixtures are the 42 keg-shaped water barrels, used to simulate the weight of passengers and baggage. For certain tests, water is pumped between barrels to rapidly change the airplane's center of gravity. Instruments, installed on racks, can record more than 21,000 inputs during flight, including engine performance, temperatures and flight control surface angles, which are transmitted in real time to a telemetry, or transmission, room at Boeing Field in Seattle. The data allows engineering specialists to monitor and analyze the airplane's systems and performance. The goal of flight testing is to thoroughly test the airplane and ensure that it is reliable and service-ready when it is delivered to the launch customer.
Add to lightbox
Add to cart
Unique identifier
BI215476
Boeing ID
k60529
Type
Size
3000px × 1994px 17MB
License type
RM
Keywords
1990s
airplanes
commercial
commercial passenger planes
currently in production
ground shots
interiors
jets
lookback views
monoplanes
passenger cabins
perspective lines
photos
repetition
researchers
several/groups
testing
weight barrels
