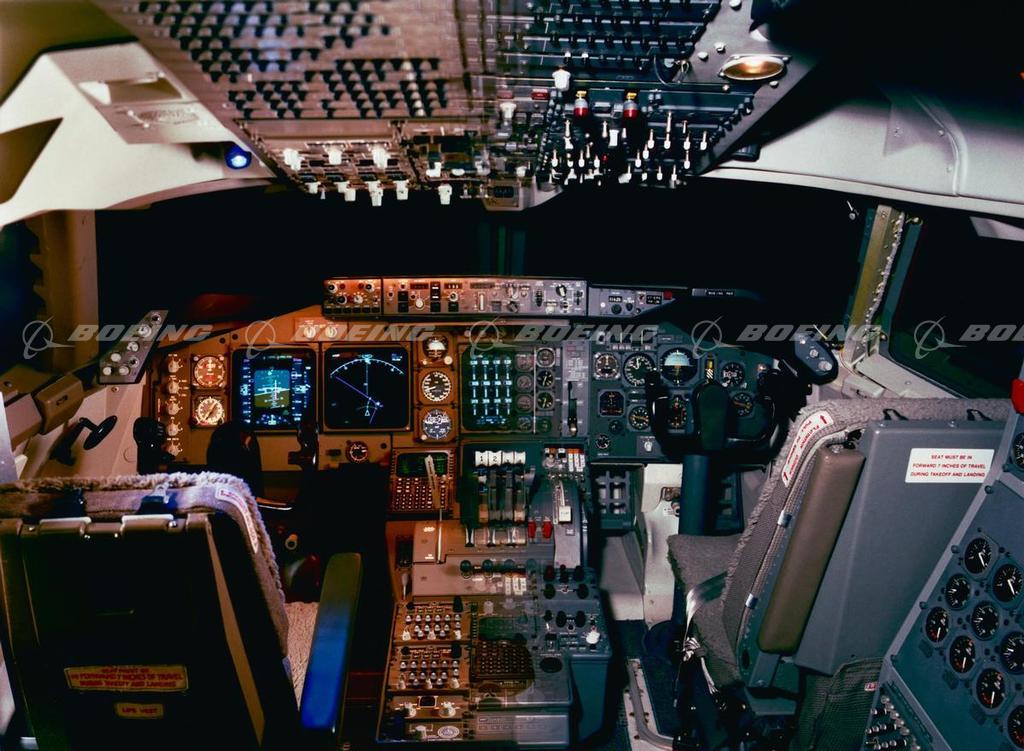

747-100 and 747-400 Flight Decks

The 747-400 flight deck replaced the analog systems of the 747-100, -200 and -300 with digital avionics. This reduced the number of lights, gauges and switches from 971 to 365. Programmable displays and simpler cockpit procedures also reduced crew workload in the flight deck, allowing the number of crew members to decrease from three to two.
 Add to lightbox
 Add to cart
Unique identifier BI218902
Boeing ID k57952
Type Image
Size 4445px × 3261px   41MB
License type RM
