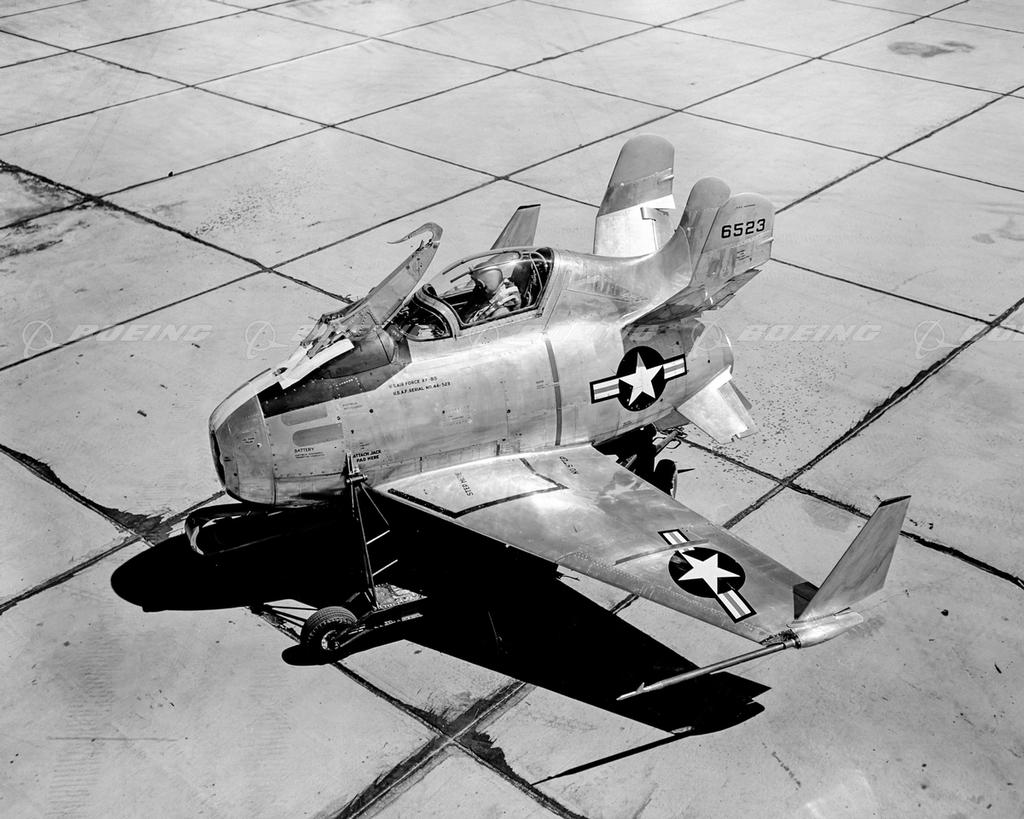

McDonnell XF-85 Goblin on Flight Ramp, April 1949

The McDonnell XF-85 Goblin, the smallest jet-propelled fighter ever built, was a "parasite" designed to be dropped from a bomber, perform its mission and return to the mother ship. The XF-85 Goblin was egg shaped and its wings, swept back 37 degrees, could fold upward. The XF-85 had no landing gear, but was launched from the bomber and recovered using a hook and a retractable trapeze under the parent airplane. For emergencies, the Goblin had a steel skid under the fuselage and small runners on its wingtips. The tiny fighter was stable, easy to fly and recovered well from spins. However, many pilots found it hard to hook the Goblin in flight to its bomber's trapeze. McDonnell built two XF-85 Goblins, and one joined the collection at the U.S. Air Force Museum at Wright-Patterson Air Force Base, Ohio.
 Add to lightbox
 Add to cart
Unique identifier BI42088
Boeing ID d4e-13188
Type Image
Size 6439px × 5151px   31MB
License type RM
Keywords
1940s
adults
canopies
copy space
day
exteriors
fighters
flight lines
folding wings
full body views
fuselages
grid patterns
ground shots
historic production status
left front views
male
military
military livery
one person
pilots
research/experimental
shine
small
tarmac
vintage / retro
Restrictions
