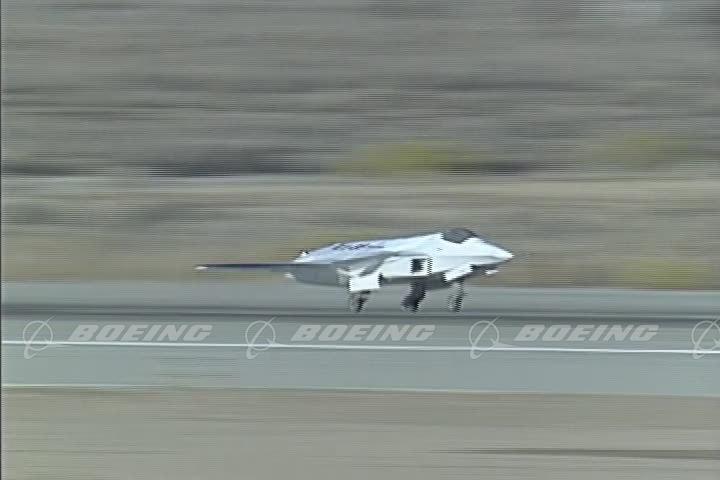

X-36 Flight Test Highlights

In a series of flight tests, the low-cost X-36 research vehicle demonstrated the feasibility of using new flight control technologies in place of vertical and horizontal tails to improve the maneuverability and survivability of future fighter aircraft. During flight, the X-36 used new split ailerons and a thrust-vectoring nozzle for directional control. The ailerons not only split to provide yaw (left and right) control, but also raise and lower asymmetrically to provide roll control.

Using a video camera in the nose of the vehicle, a pilot controls the flight of the X-36 from a virtual cockpit -- complete with head-up display (HUD) -- in a ground-based station. This pilot-in-the-loop approach eliminates the need for expensive and complex autonomous flight control systems.
 Add to lightbox
 Add to cart
Unique identifier BI46911
Boeing ID BIV16_X-36_02
Type Video
Duration 3m12s
Size 720px × 480px   72MB
License type RM
