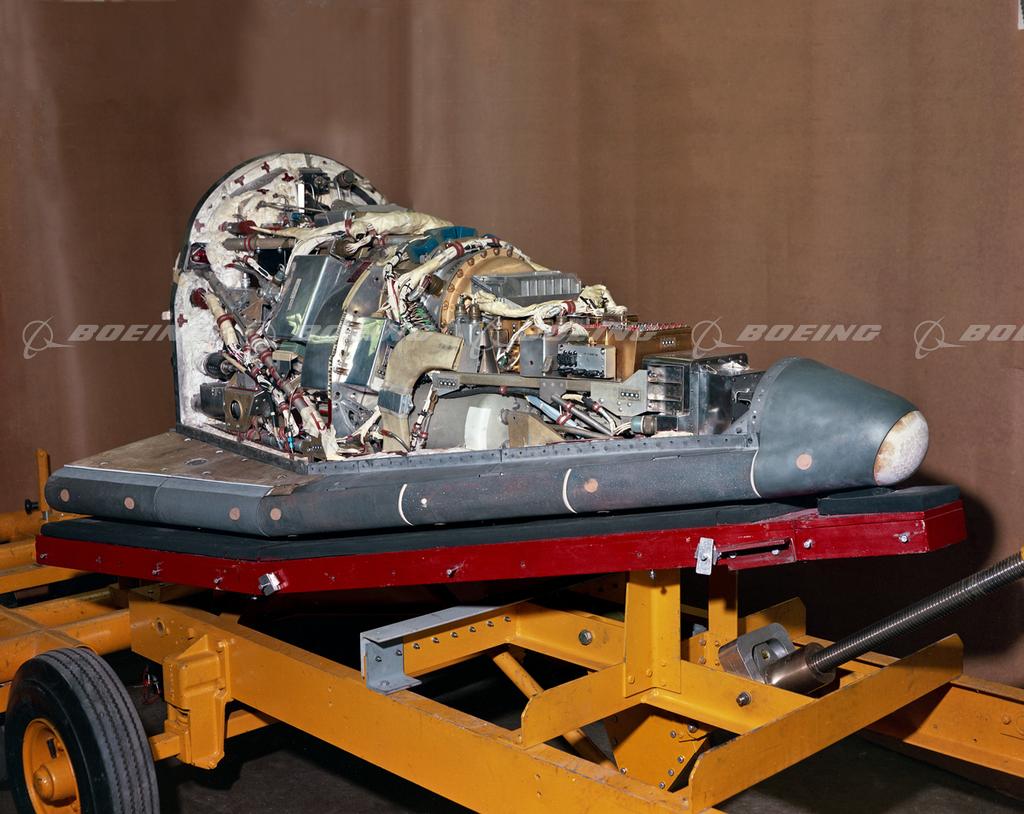

McDonnell ASSET Re-entry Vehicle, Skin Removed

The USAF ASSET research program was the first phase of the Spacecraft Technology and Advanced Re-entry Tests (START) involving the testing of an unmanned subscale reentry vehicle.

The ASSET vehicles were built by McDonnell Aircraft Corp. Six were launched on Thor boosters rockets during 1963-1965. The McDonnell ASSET vehicle had a maximum speed of Mach 25. Only one of the six ASSET vehicles (ASV-3) was recovered following the test flights above the Atlantic Ocean and it is on display at the Museum of the USAF.

Lessons learned from the ASSET program eventually found their way to the Space Shuttle Orbiter.
 Add to lightbox
 Add to cart
Unique identifier BI41679
Boeing ID D4C-14108
Type Image
Size 3607px × 2866px   29MB
License type RM
Keywords
1960s
ascending
ASSET spacecraft
day
fire
full body views
ground shots
historic production status
interiors
launch sites
launches
other livery
power
research/experimental
right side views
small
smoke
space
unmanned vehicles
wires and cables
Restrictions
