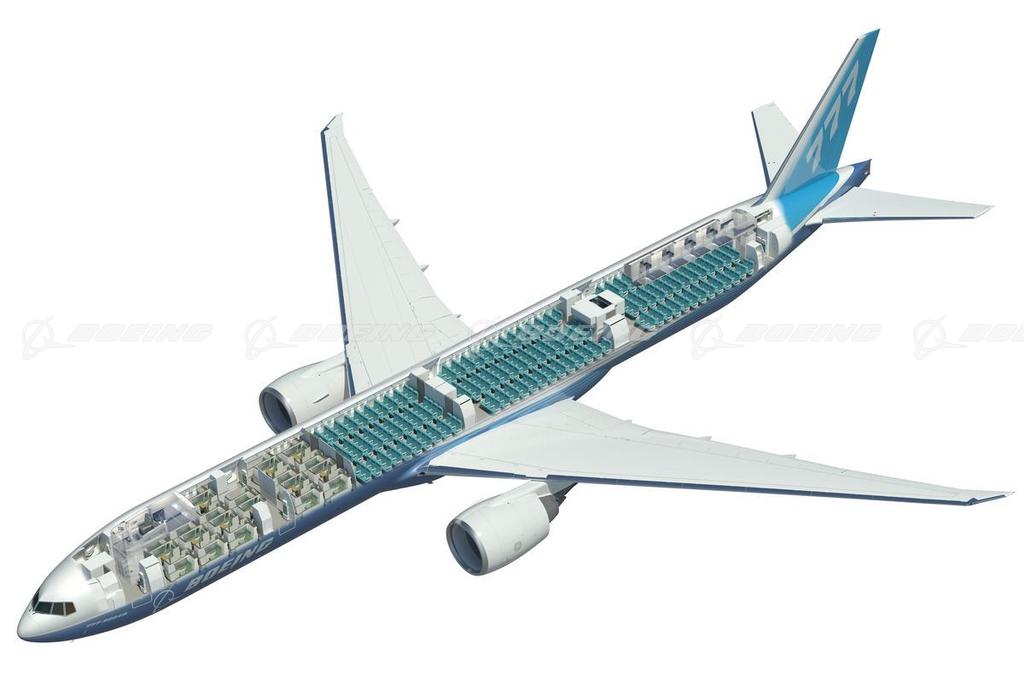

777-300ER Cutaway

A cutaway illustration of the 777-300ER. The 777-300ER extends the 777 family's span of capabilities, bringing twin-engine efficiency and reliability to the long-range market. The airplane carries 365 passengers up to 7,930 nautical miles (14,685 km).

Boeing incorporated several performance enhancements for the 777-300ER, extending its range and payload capabilities. Excellent performance during flight testing, combined with engine efficiency improvements and design changes that reduce drag and airplane weight, contributed to the increased capability.
 Add to lightbox
 Add to cart
Unique identifier BI410512
Boeing ID 777-300ER cutaway standard 2 class
Type Image
Size 8000px × 5333px   67MB
License type RM
Keywords
2010s
3D visualization
computer-generated imagery (CGI)
currently in production
cutaway views
full body views
fuselages
large
left side views
nobody
tails
