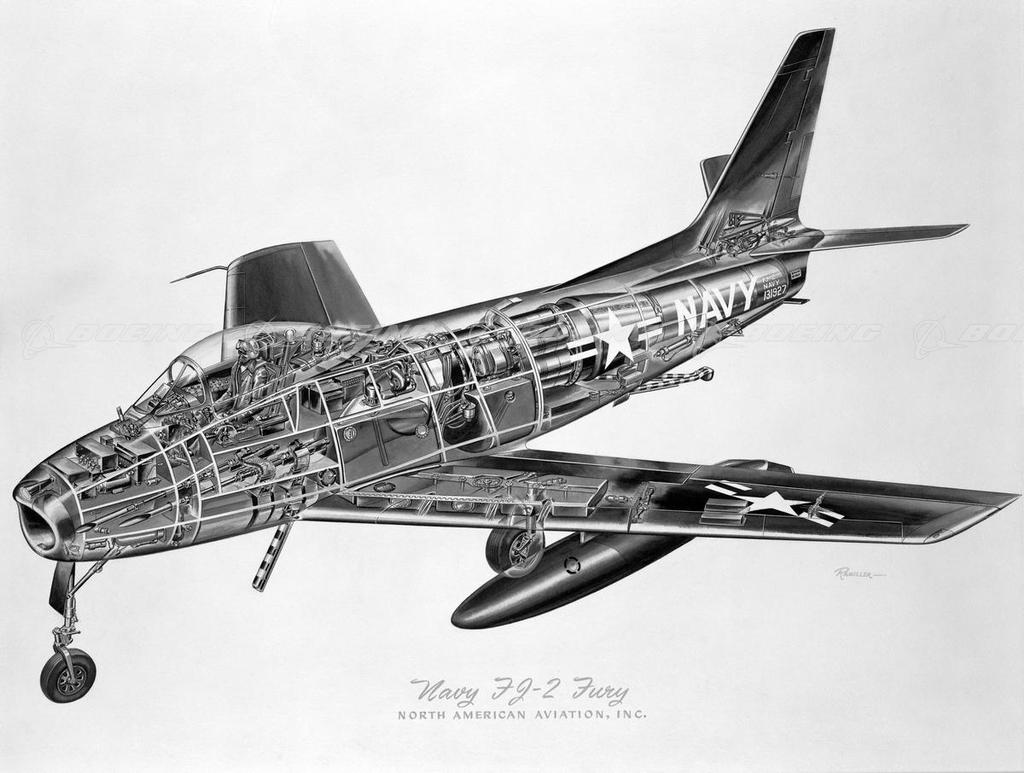

FJ-2 Fury Cutaway Poster

The North American Fury fighter was a short, squat airplane looking much like a high-flying bomb. The FJ-1 was the first American jet fighter to employ a single, straight ram duct with its entrance in the nose. Later versions, the -2, -3 and -4 models, were designed with swept wings for operation at higher altitudes and faster speed over a greater range than earlier Fury jets. Extra fuel was stored in wingtip tanks. A special feature was the bending nose gear, so the fighter could kneel down on the crowded deck of an aircraft carrier. Built for carrier and land operations, the FJ-1 could take off from a landing field or a carrier flight deck with normal jet power. The Fury was the first jet fighter to complete an operational tour at sea. A total of 33 straight-wing Furies were built at first, but the later swept-wing versions filled the Navy's demand for an aircraft similar to the F-86.
 Add to lightbox
 Add to cart
Unique identifier BI25828
Boeing ID h181-00-6
Type Image
Size 5100px × 3850px   18MB
License type RM
Keywords
1950s
airplanes
copy space
cutaway views
exteriors
fighters
full body views
grid patterns
historic production status
illustrations
jets
left front views
military
military livery
monoplanes
nobody
POINT OF VIEW
scanned from film negative
text
viewed from above
