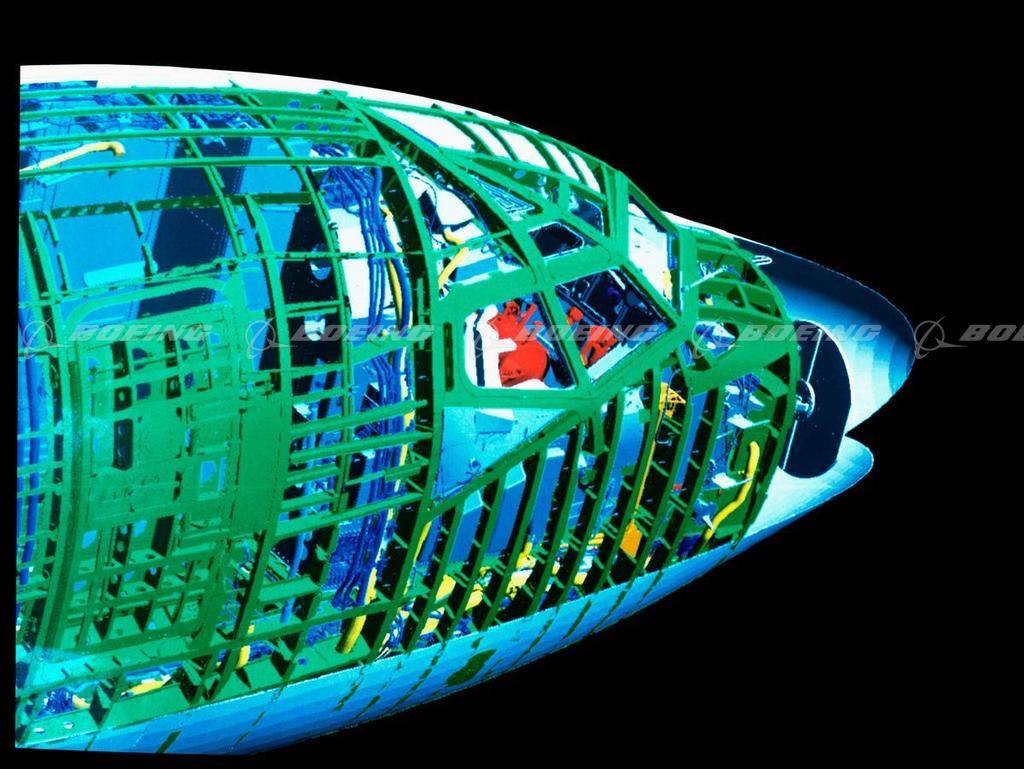

Computer-Generated Diagram of 737 Nose
The Next Generation 737 is the first standard-body jetliner to employ fully integrated three-dimensional digital definition and design. Using a single set of digital data allows the 737 to establish new standards for precision and efficiency through digital preassembly and concurrent engineering, and using production tooling from the outset.
Add to lightbox
Add to cart
Unique identifier
BI220300
Boeing ID
c12v
Size
4949px × 3714px 52MB
License type
RM
Keywords
1990s
airplanes
black
blue
CAD, computer-aided design
close-ups
commercial passenger planes
currently in production
fuselages
green
grid patterns
high-tech / advanced
illustrations
jets
monoplanes
nobody
nose sections
right side views
structural systems
viewed from above
vivid color
