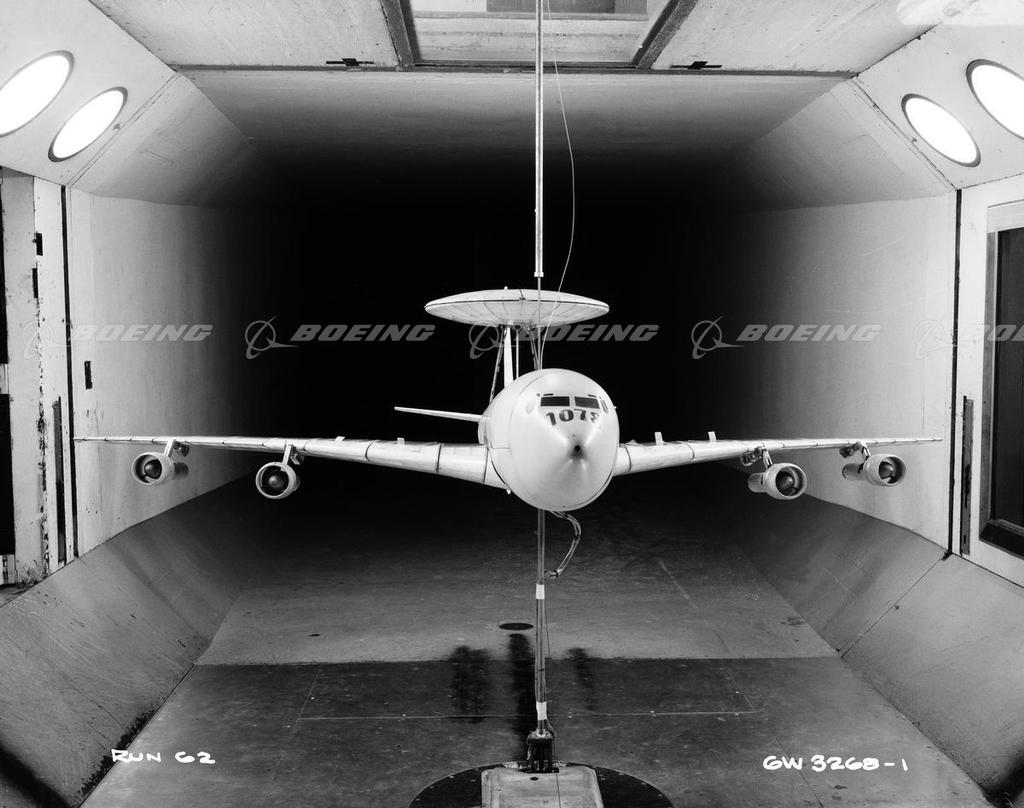

E-3 AWACS Model at University of Washington Wind Tunnel

Based on a Boeing 707-320B airframe, the E-3 airborne warning and control system (AWACS) provides surveillance, command-and-control (C2), and communications functions for tactical and defensive missions. In service since 1977, it is used by the U.S. Air Force, NATO, United Kingdom, France, and Saudi Arabia.
 Add to lightbox
 Add to cart
Unique identifier BI220695
Boeing ID 6w3268-1
Type Image
Size 4584px × 3619px   15MB
License type RM
Keywords
1970s
Airborne Warning and Control System (AWACS)
airplanes
electronic warfare
full body views
ground shots
head on views
interiors
jets
military
monoplanes
nobody
other livery
out of production
perspective lines
photos
rotating dome
rotating dome surveillance radar
science and technology
testing
text
wind tunnels
