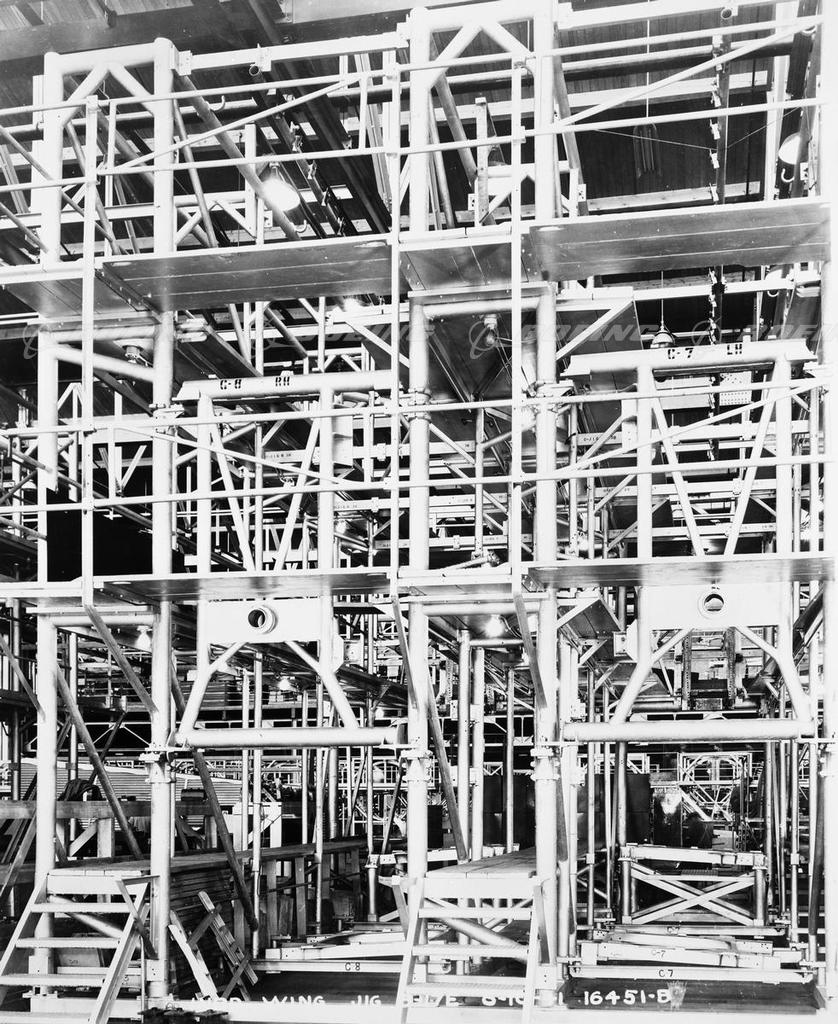

B-17E Flying Fortress Inboard Wing Jig

The B-17E, the first mass-produced model Flying Fortress, carried nine machine guns and a 4,000-pound bomb load. It was several tons heavier than the prototypes and bristled with armament. It was the first Boeing airplane with the distinctive -- and enormous -- tail for improved control and stability during high-altitude bombing. Each B-17 version was more heavily armed.
 Add to lightbox
 Add to cart
Unique identifier BI220509
Boeing ID 16451b
Type Image
Size 4620px × 5645px   49MB
License type RM
Keywords
1940s
airplanes
bombers
complexity
factories
grid patterns
ground shots
historic production status
interiors
manufacturing
military
monoplanes
nobody
perspective lines
photos
propeller planes
stairs, lifts and ladders
text
