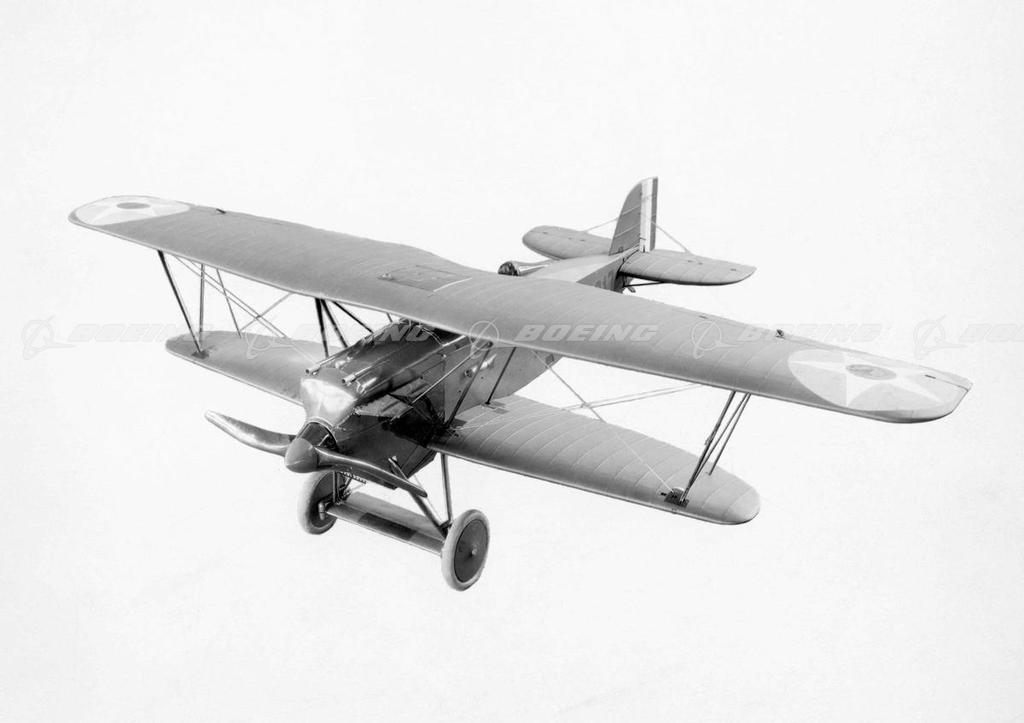

Model of Boeing PW-9

The Model 15 (PW-9) was the first successful Boeing-designed fighter and established the company as a major American builder of military aircraft. Its internal bracing was arc-welded tubing rather than the spruce and wire used in older biplanes. However, it still had wooden spars and ribs. Boeing also introduced the first oleo shock absorbers for aircraft. It was designated PW-9 (for "pursuit water-cooled design 9) by the Army and designated FB-1 by the Navy. Between 1923 and 1928, Boeing built 157 PW-9/FBs in different versions, as well as 77 derivatives as NBs (Navy training planes). The NBs were 4 feet longer than the PW-9/FBs and powered by either 180- or 200-horsepower engines. Boeing sold five NBs to Peru.
 Add to lightbox
 Add to cart
Unique identifier BI222285
Boeing ID 709b
Type Image
Size 5058px × 3571px   17MB
License type RM
Keywords
1920s
airplanes
biplanes
copy space
cutouts
fighters
full body views
historic production status
left front views
military
military livery
nobody
photos
propeller planes
trainers
viewed from above
vintage / retro
