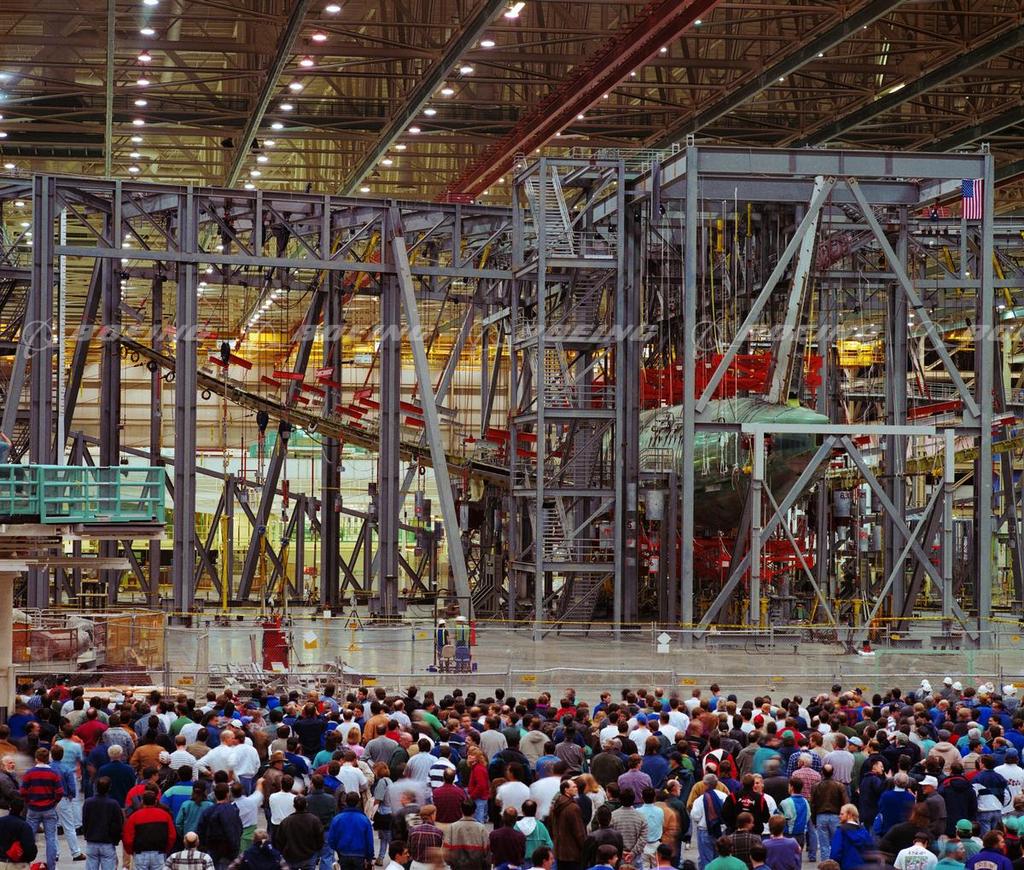

Next Generation 737 Static Wing Test

The static test is one of the most dramatic moments during the testing of an all-new commercial jetliner before it can carry passengers. While on the ground, the wings of the new plane are gradually bent up until they snap. For certification, the wings must withstand loads up to 1.5 times, or 150 percent, of the highest aerodynamic load that the jet could ever be expected to encounter. Boeing has tested wings to the breaking point, to demonstrate that the wings of its jetliners have a safety margin greater than required and to validate the analytical tools that engineers use in designing new jets.
 Add to lightbox
 Add to cart
Unique identifier BI222695
Boeing ID 95sk04052-23
Type Image
Size 2584px × 2197px   16MB
License type RM
Keywords
1990s
adults
airplanes
audiences
commercial
commercial passenger planes
crowds
currently in production
factories
factory workers
grid patterns
ground shots
interiors
jets
left rear views
male
manufacturing
monoplanes
photos
rear views
safety
stairs, lifts and ladders
structural systems
testing
three-quarter length views
unpainted
