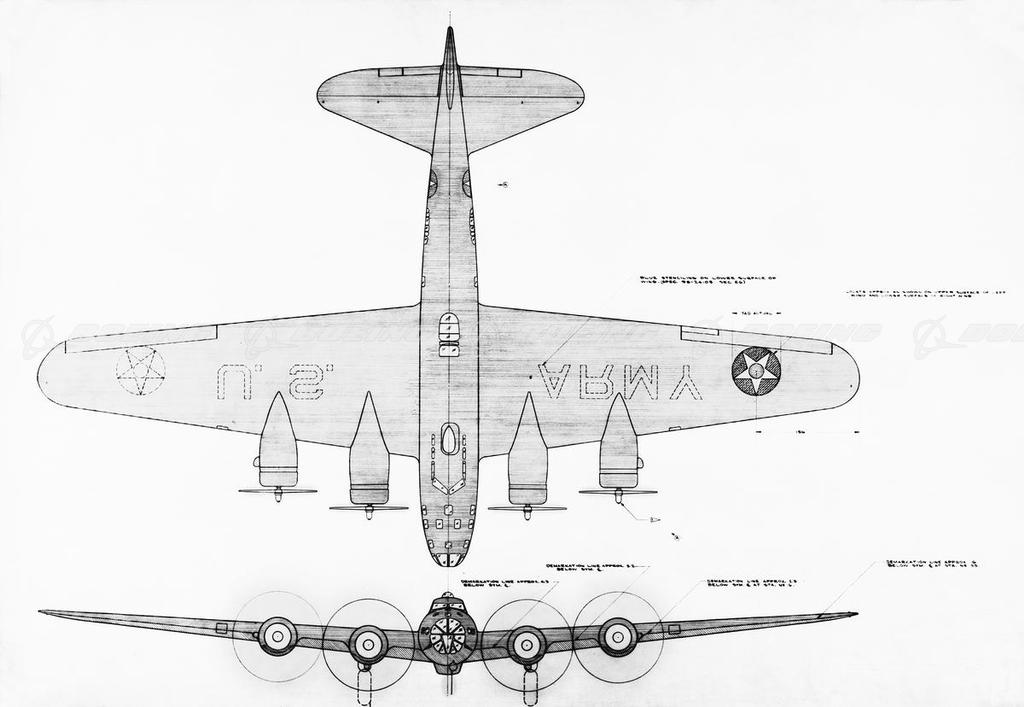

B-17C Flying Fortress Original Design Drawing

The Boeing B-17C of 1940. On this model of the Flying Fortress, side blisters were replaced by flat paneled gun positions, a gun position was installed under the fuselage, and greater armor plate was added. The first of 20 of this order were assigned to Britain's Royal Air Force, and Germany got her first taste of effectiveness of this substratoshpere bomber when an RAF squadron scored hits on the battleships Scharnhorst and Gneisnau in the harbor of at Brest from altitudes never before used in bombing. A total of 38 B-17Cs was built, while Stratoliner production also continued. B-17C Specifications: Wing span, 103' 9"; length, 67' 10"; weight, 39,065 lbs; speed, 300 mph; ceiling, 36,000 ft; range, 3,400 miles; power, four Wright R-1820 (1,000 hp) engines.
 Add to lightbox
 Add to cart
Unique identifier BI231367
Boeing ID 15-7739a
Type Image
Size 3600px × 2485px   8MB
License type RM
Keywords
1940s
airplanes
bombers
cutouts
diagrams
full body views
head on views
historic production status
illustrations
military
military livery
monoplanes
nobody
propeller planes
symmetry
text
viewed from above
vintage / retro
Restrictions
