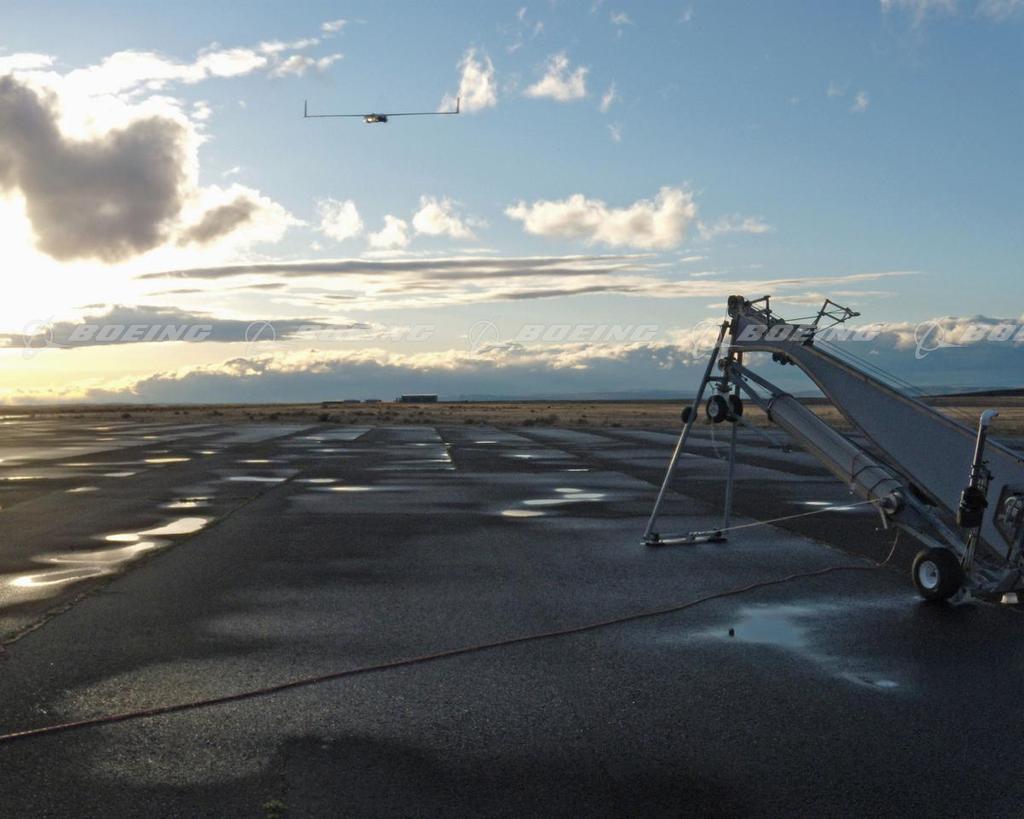

Scan Eagle Test Launch

ScanEagle is a low-cost, long-endurance UAV developed and built by Boeing and the Insitu Group. The U.S. Marine Corps and U.S. Navy are using ScanEagle to loiter over trouble spots and provide real-time intelligence, surveillance and reconnaissance information. The UAV, which is four feet long with a 10-foot wingspan, carries either an inertially stabilized electro-optical or an infrared camera. The camera allows the operator to easily track both stationary and moving targets. ScanEagle is launched autonomously via a pneumatic wedge catapult launcher and flies pre-programmed or operator-initiated missions guided by GPS and its onboard flight-control system. It is retrieved using a "Skyhook" system in which the UAV catches a rope hanging from a 50-foot high pole. The patented system allows ScanEagle to be runway independent and operate from forward fields, mobile vehicles or small ships.
 Add to lightbox
 Add to cart
Unique identifier BI231389
Boeing ID k64661
Type Image
Size 3000px × 2400px   20MB
