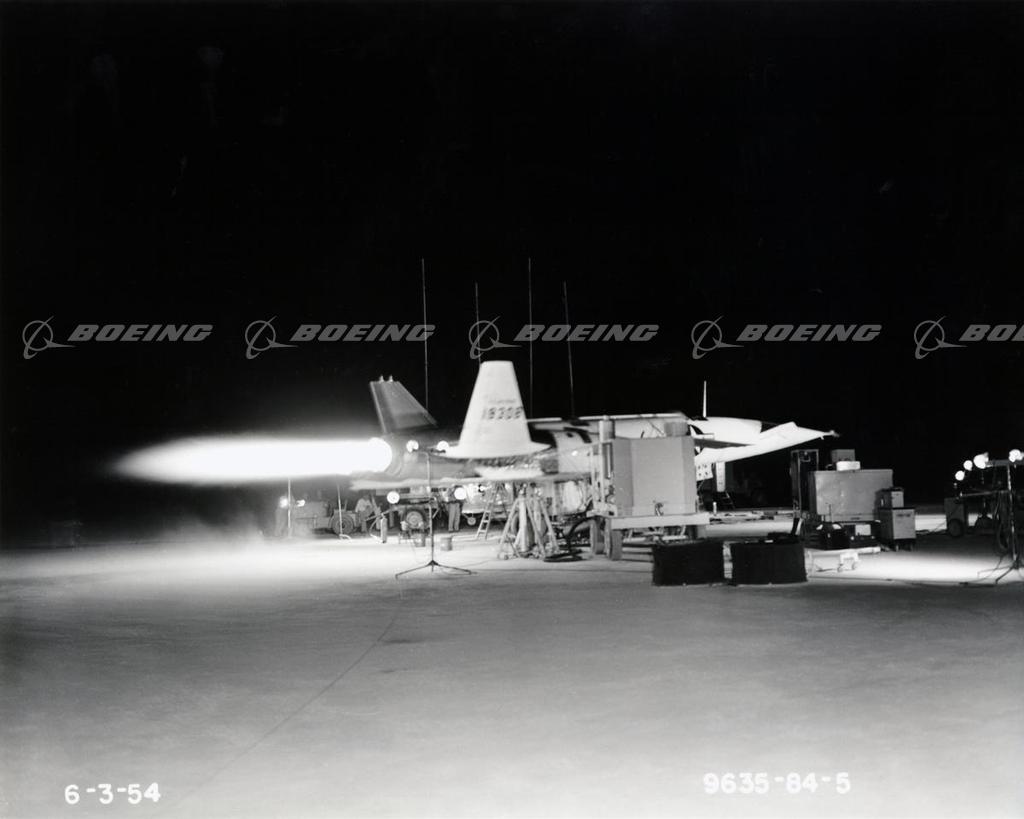

Test Firing of X-10 Navajo Missile Prototype

Although the Air Force canceled the Navaho program in 1957, in its 10 years of existence, the Navaho made many key technological breakthroughs. The X-10 Navaho test drone was the first turbojet-powered vehicle to reach Mach 2 and the first aircraft to fly a complete mission under inertial (computerized) guidance. Its booster engine set a record by producing 405,000 pounds of thrust. The X-10 was the only missile to be classified as an "X" plane and completed more than 20 flights. Data from these flights led to the development of the SM-64 Navaho ground-to-ground missile system.
 Add to lightbox
 Add to cart
Unique identifier BI217186
Boeing ID 9635-84-5
Type Image
Size 3000px × 2400px   20MB
