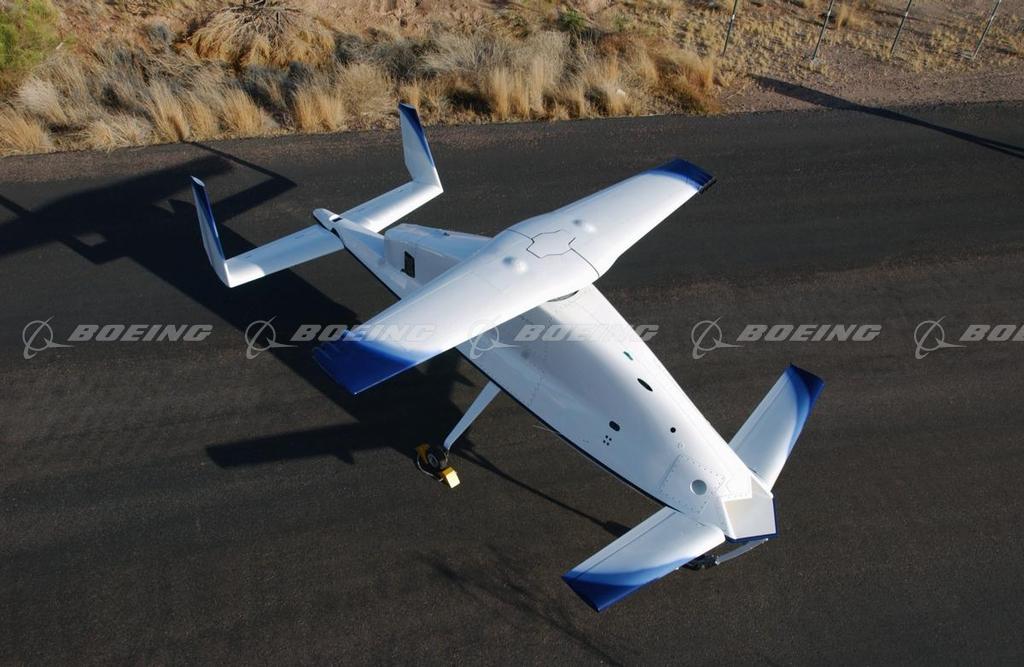

X-50A Dragonfly Canard Rotor Wing
The Dragonfly demonstrator, also known as the X-50A, is propelled by a conventional turbofan engine combined with a unique Boeing reaction drive rotor system. During rotary-wing flight the engine powers the rotor system using thrust ducted to nozzles near the rotor tips. During conversion, a canard wing and horizontal tail provide the lift necessary to remain aloft until the rotor blade stops and functions as a fixed wing. Engine power is redirected aft to provide forward thrust. The aircraft requires no gearbox, transmission or tail rotor.
Add to lightbox
Add to cart
Unique identifier
BI230743
Boeing ID
crw_front
Type
Size
3008px × 1960px 16MB
License type
RM
Keywords
2000s
blue
day
digitally-enhanced images
exteriors
full body views
futuristic
gray color
ground shots
high-tech / advanced
other livery
photo illustrations
right front views
rotorcraft
shadows
sunshine
tarmac
technology demonstrators
unmanned vehicles
viewed from above
white
X-50A Dragonfly
