787 Wingbox Destructive Testing

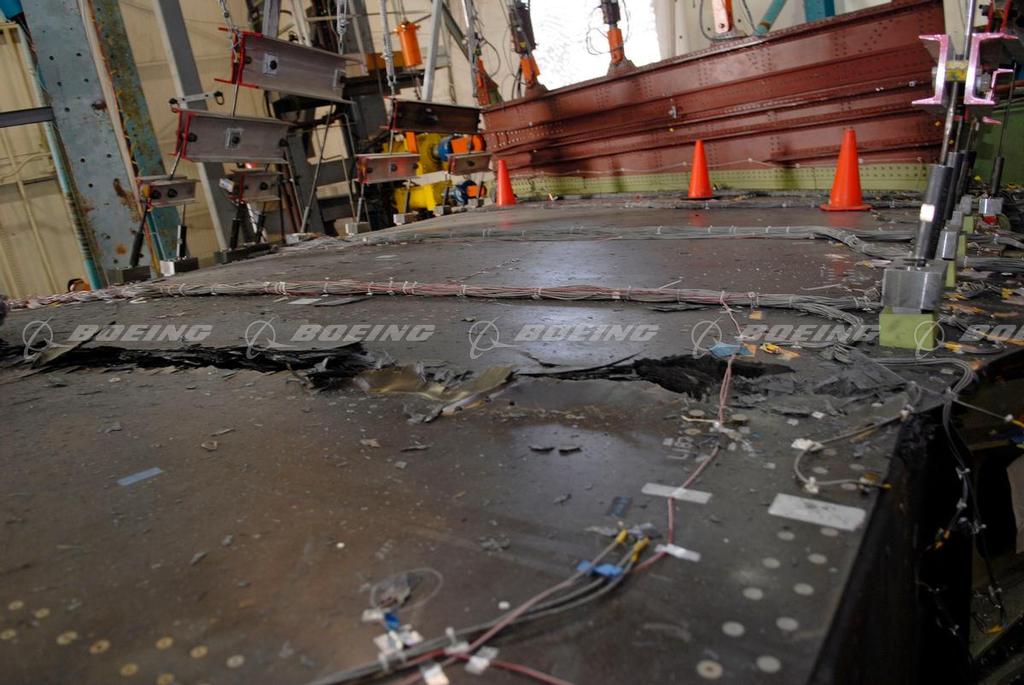

On Nov. 15, 2008, Boeing completed destructive testing on a full-scale composite wing box of the 787 Dreamliner, the first Boeing all-composite wing box ever built. To meet certification requirements, the wings must withstand loads up to 1.5 times, or 150 percent, of the highest aerodynamic load that the jet could ever be expected to encounter. The wing box is a cantilevered beam that carries the wing to the fuselage and supports leading- and trailing-edge devices, control surfaces, engines and landing gear. The test piece represents a portion of the wing section that begins at about the center of the airplane and stops at approximately one-half of the span of the wing -- approximately 50 feet (15.2 meters). The piece measures approximately 18 feet (5.5 meters) at its widest point.
