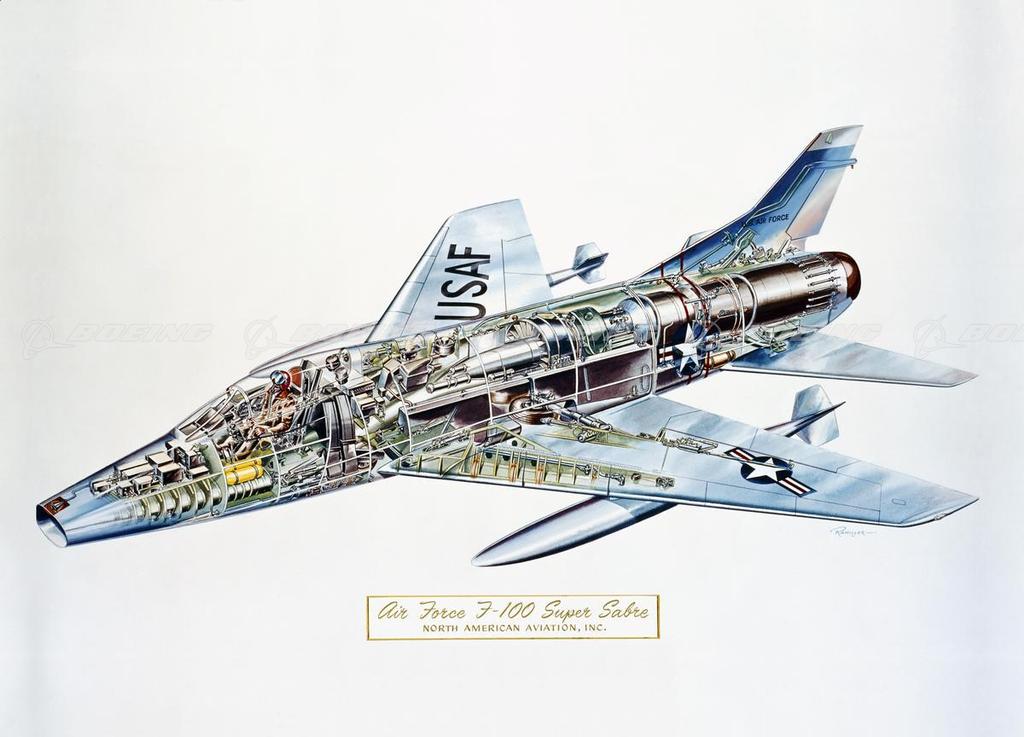

F-100A Super Sabre Cutaway Illustration
The F-100 Super Sabre was a sleek, swept-back-wing fighter that gave the United States a supersonic Air Force. Since May 1953, when the first prototype model, the YF-100, bettered the speed of sound on its first flight, the versatile fighter set numerous records for speed, endurance, range and maintenance. Late production models of the F-100D and F-100F had the capability of being launched from remote areas in the manner of manned missiles. Of the 2,290 Super Sabres produced, 1,274 F-100Ds included the first autopilot designed for a supersonic jet. Powered by a 16,950-pound-thrust afterburning jet engine, the F-100 was armed with four 20-millimeter cannons, two GAM 83A Bulldog missiles, four Sidewinder missiles, rockets, special stores, and/or 7,040 pounds of bombs.To demonstrate the ability of its pilot and aircraft, the Air Force chose F-100 Super Sabres to perform throughout the world in aerial precision demonstration flights. The famed Thunderbirds, a four-man aircraft team, were viewed by over 19 million people as the storied pilots performed intricate precision maneuvers at low altitude.
Add to lightbox
Add to cart
Unique identifier
BI23674
Boeing ID
naa2143
Type
Size
6000px × 4321px 74MB
