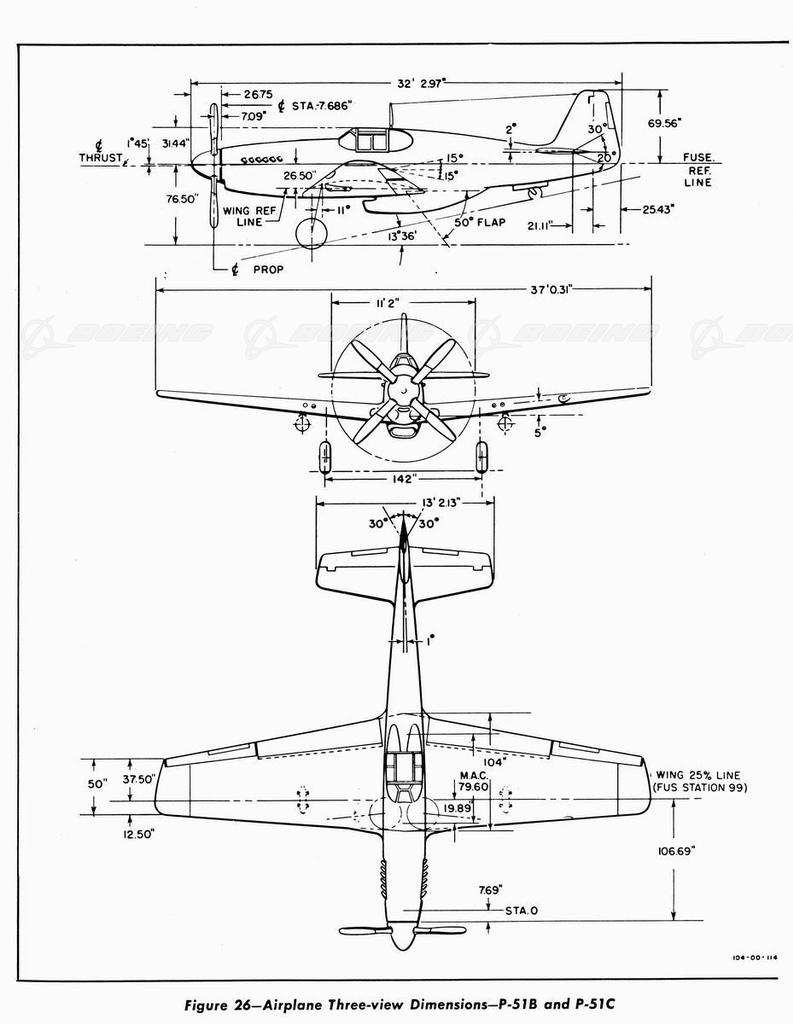

Three-view Diagram of P-51B and P-51C Mustangs

North American Aviation's powerful and agile P-51 was the first single-engine aircraft based in England to penetrate Nazi Germany during World War II. With its superior aerodynamics, the Mustang outperformed enemy planes and went on to establish an impressive aerial record. It first flew in 1941 and was initially designed for the British Royal Air Force for fighter reconnaissance. By war's end North American built 15,575 P-51 Mustangs. The P-51D Mustang had a wingspan of 37 feet and was 32 feet long. Powered by one 1,490- horsepower engine, it flew 437 mph with a range of 2,300 miles.
 Add to lightbox
 Add to cart
Unique identifier BI211898
Boeing ID naa1566
Type Image
Size 3950px × 5100px   19MB
License type RM
Keywords
1940s
3-views
airplanes
fighters
full body views
head on views
historic production status
illustrations
left side views
military
monoplanes
nobody
propeller planes
symmetry
text
viewed from above
