Boeing-Developed Shutter Compass on B-17 Flying Fortress

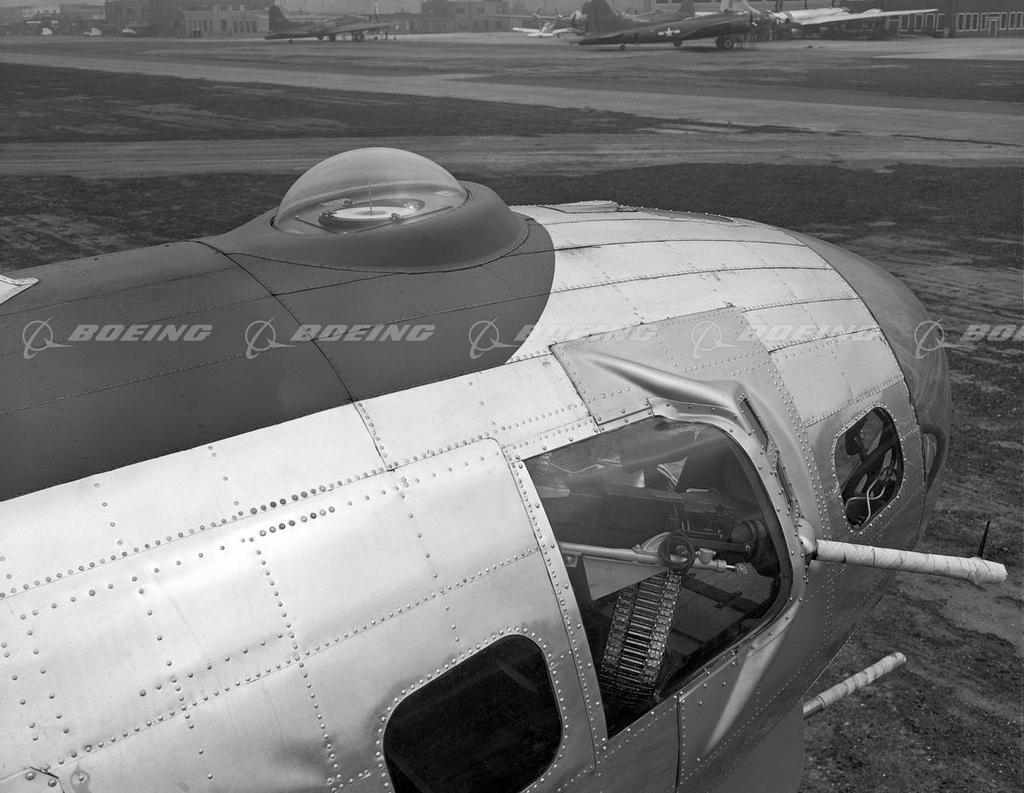

This photograph shows the Boeing-developed shadow compass installed in the astrodome of a Flying Fortress (on top of the fuselage). Modern scientists have made the greatest improvements in the magnetic compass during this war than ever have been made since the compass was devised some 4,000 years ago. But the age-old theory of the sun dial has been applied in the shadow compass to check the variations of the magnetic compass. No outside infuences affect the shadow compass. The dark area surrounding the astrodome is one of the six areas on a Flying Fortress now painted. These spots are painted to keep the glare of the sun from the eyes of the pilots and gunners.
Add to lightbox
Add to cart
Unique identifier
BI211784
Boeing ID
p4864
Type
Size
3600px × 2788px 9MB
License type
RM
Keywords
1930s
airplanes
ammunition/weapons systems
B-17 Flying Fortress (Model 299)
bombers
close-ups
day
exteriors
fuselages
grid patterns
ground shots
historic production status
military
monoplanes
nose sections
photos
propeller planes
structural systems
tarmac
unpainted
viewed from above
windows
