Boeing and Industry Partners Prove Quiet Technologies for Commercial Jets

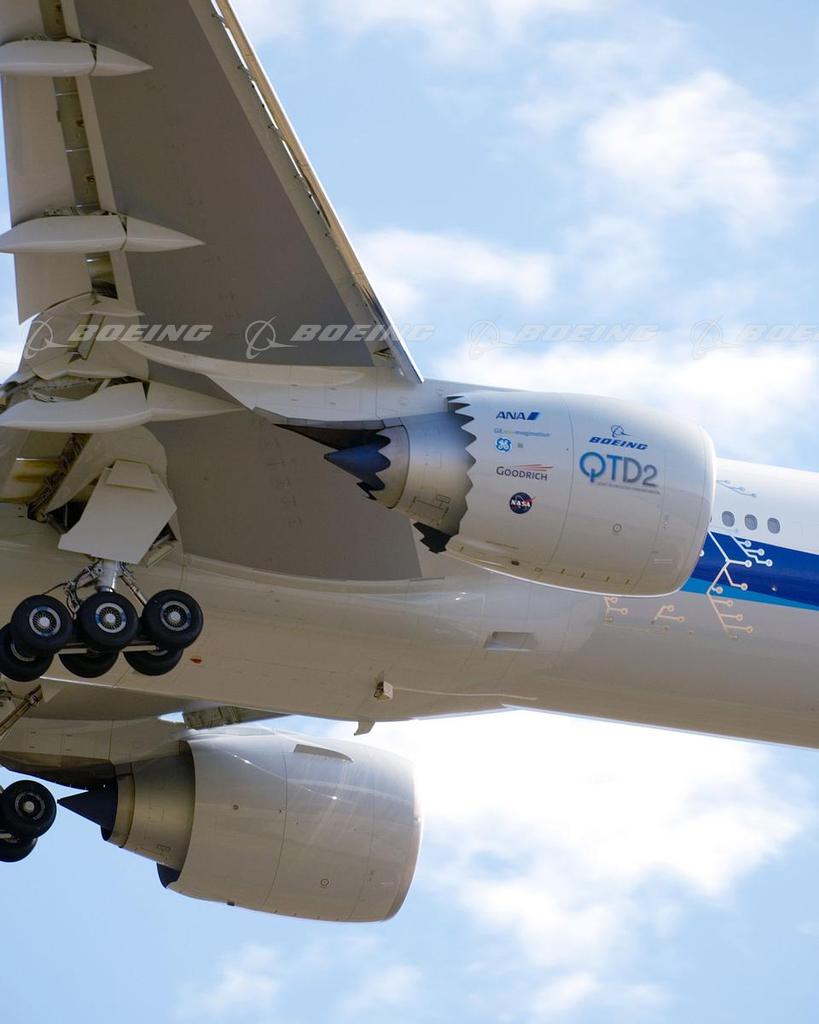

The Quiet Technology Demonstrator 2 (QTD2)research and development program was completed in November 2005. A 777-300ER with GE90-115B engines, already the quietest airplane in its class, was fitted with eight different noise-reduction engine inlet and exhaust combinations on the right wing, and the baseline production engine on the left wing. Fan and engine-core chevron exhaust configurations achieved as much as a two-decibel improvement -- a significant community noise reduction. Because jet noise is generated by the jet wake -- extending nearly 50 feet behind the engine -- any reduction is considered a significant achievement. In addition, the low-frequency rumble heard in the aft cabin by passengers during cruise was reduced by up to four to six decibels.
Add to lightbox
Add to cart
Unique identifier
BI228597
Boeing ID
k63429-135
Size
2400px × 3000px 20MB
License type
RM
Keywords
2000s
air to air
blue
blue skies
bright
close-ups
clouds
commercial airline livery
commercial passenger planes
copy space
currently in development
currently in production
day
engines
exteriors
flying
gray
high-tech / advanced
landing gear doors
main wheels
nacelles
nobody
photos
propulsion systems
Quiet Technology Demonstrator Two (QTD2)
right side views
science and technology
slats
sunshine
technology demonstrators
testing
trailing edge flaps
viewed from below
