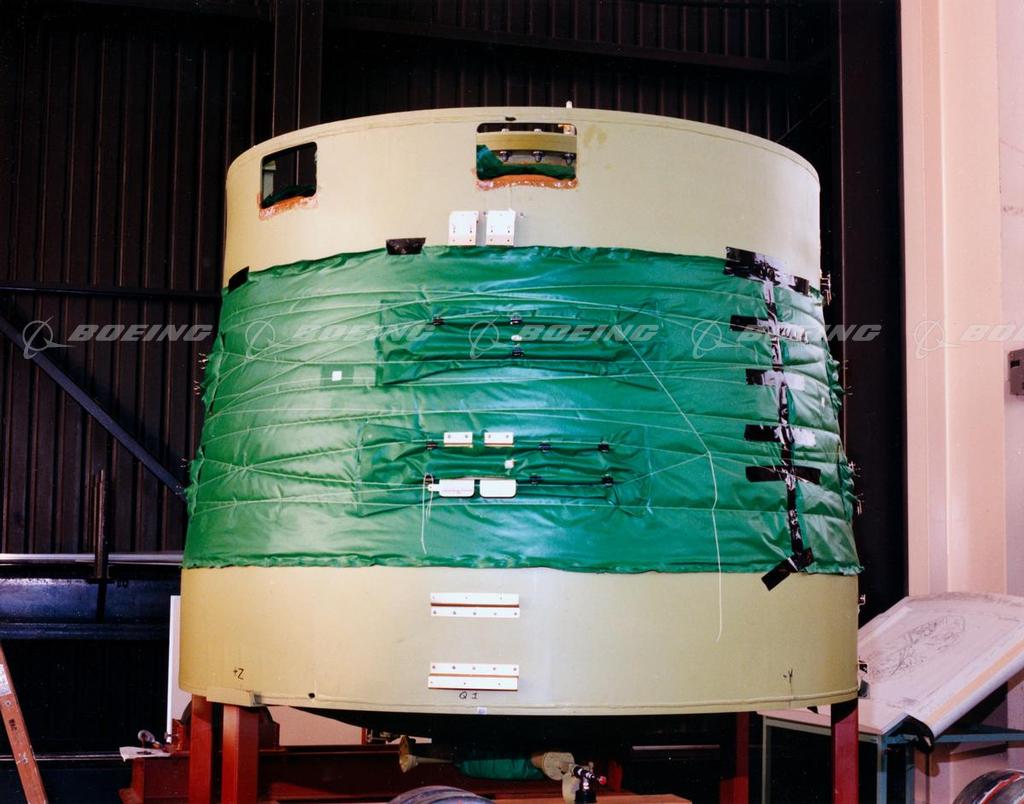

Delta Clipper Liquid Oxygen Tank

Under a cooperative agreement with NASA, McDonnell Douglas integrated advanced technology components into the vertical-takeoff, vertical-landing DC-X rocket. The components included a McDonnell Douglas-built advanced composite liquid hydrogen tank and a Russian-built aluminum-lithium liquid oxygen tank. In addition, the cone-shaped vehicle utilized an advanced composite fuel feedline, fuel valve and an advanced composite intertank structure which connected the two tanks.
 Add to lightbox
 Add to cart
Unique identifier BI229629
Boeing ID dcx_as13
Type Image
Size 2833px × 2224px   18MB
License type RM
Keywords
1990s
fuel systems
full body views
green
ground shots
historic production status
interiors
launch vehicles
manufacturing
nobody
one of a kind aircraft
photos
propulsion systems
prototypes
rockets
space
spacecraft
