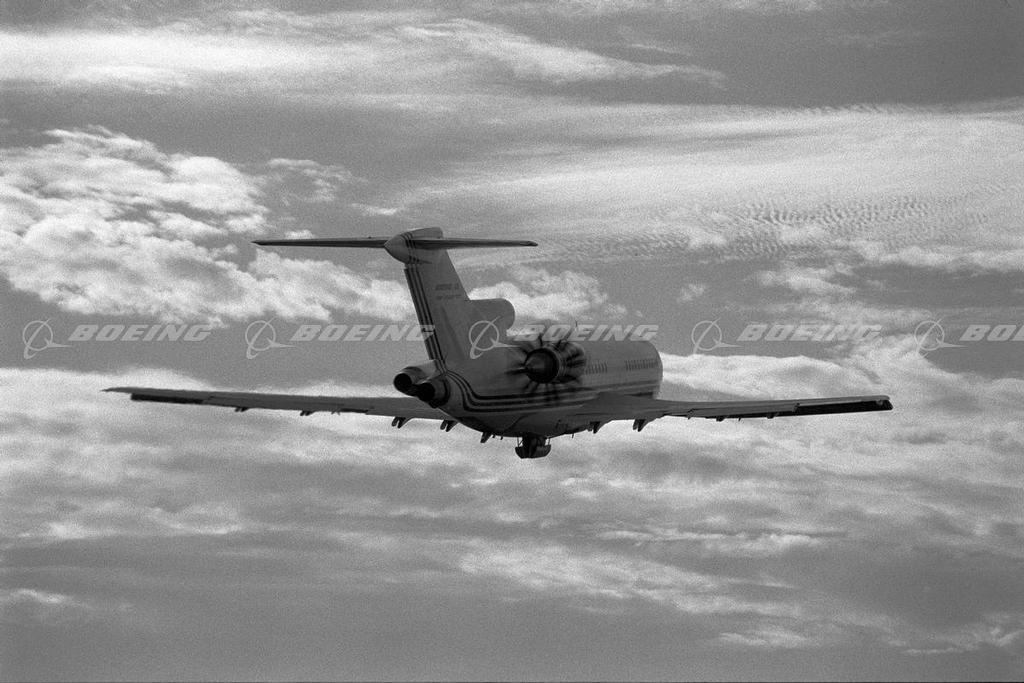

Boeing 727 UDF Test Plane in Flight

In the mid 1980s, Boeing used a company-owned 727 to test a new engine for a proposed twin propeller-turbine transport that was to be designated the Model 7-J-7. A prototype General Electric GE-36 UDF (unducted fan or propfan) engine was mounted on the right rear side in place of the standard turbo jet engine. The UDF engine was a hybrid between a turbofan and a turboprop. It had a significant weight reduction and a 45% increase in fuel efficiency, however, Boeing did not develop the 7-J-7 that was used to test it.
 Add to lightbox
 Add to cart
Unique identifier BI228805
Boeing ID p59117-21a
Type Image
Size 5100px × 3400px   16MB
License type RM
Keywords
1980s
air to air
airplanes
blur
clouds
commercial passenger planes
Conceptual aircraft, designed, but never produced
exteriors
flying
full body views
high-tech / advanced
jets
monoplanes
nobody
one of a kind aircraft
photos
propeller planes
rear views
right rear views
scanned from film negative
science and technology
sunrise
sunset
technology demonstrators
testing
twilight/dusk
