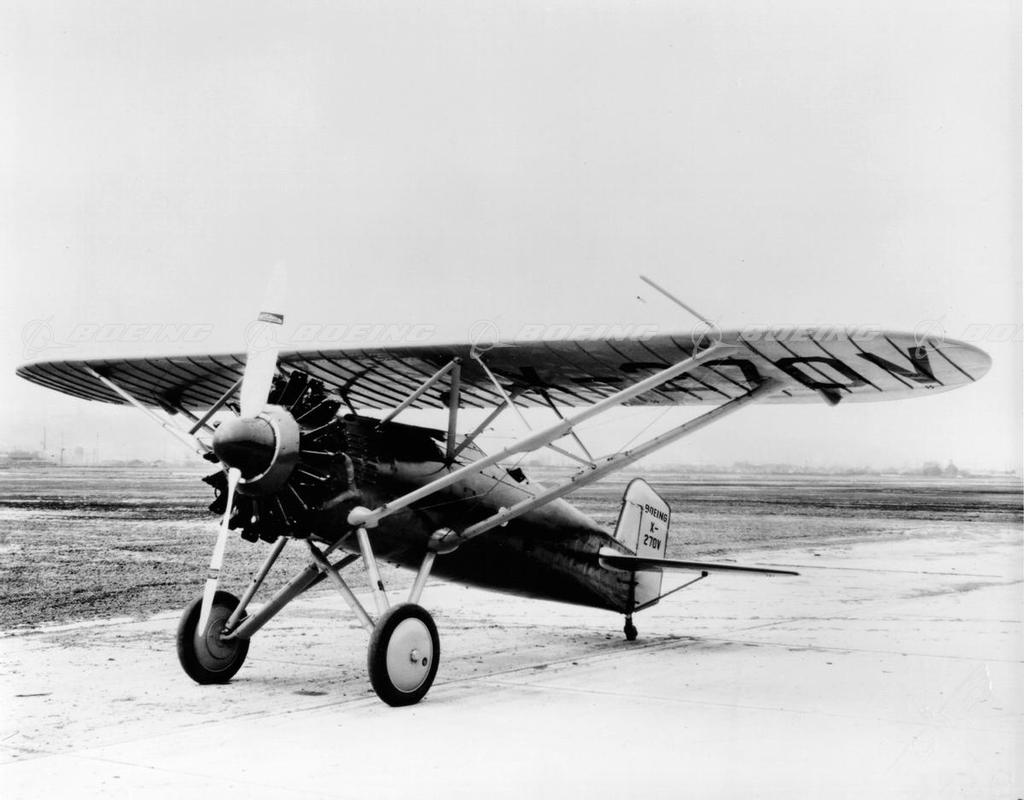

XP-15, Model 202 on the Ground

The XP-15 (Model 202) and the F5B-1 (Model 205) were monoplane fighters based on the biplane configuration. Aware that the biplane fighter design had reached its full potential, the company offered Models 202 and 205 to the military in an effort to introduce new concepts by expanding slowly on an already established design. Boeing removed the lower wing of the biplane, then added struts to support the remaining upper wing and moved it closer to the rear of the fuselage. The single-wing construction increased the top speed, but the rate of climb, manueverability, and landing speed suffered from lack of wing area, so the design was rejected.
 Add to lightbox
 Add to cart
Unique identifier BI229153
Boeing ID 3410b
Type Image
Size 2896px × 2262px   6MB
License type RM
Keywords
1930s
airplanes
copy space
day
exteriors
fighters
full body views
gray skies
ground shots
historic production status
left front views
military
military livery
monoplanes
nobody
photos
propeller planes
prototypes
tarmac
text
vintage / retro
