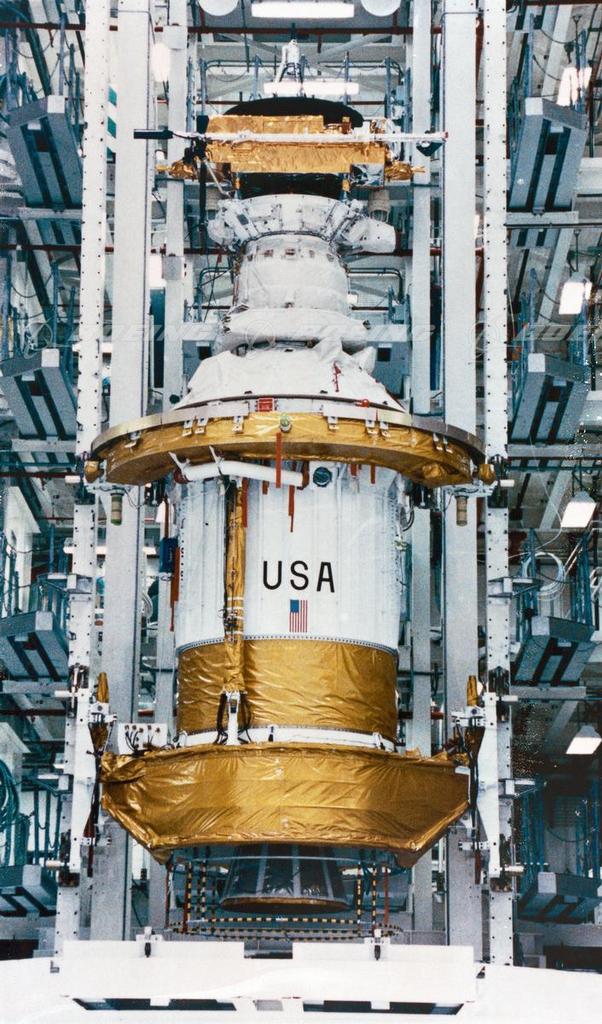

Unique Inertial Upper Stage (IUS) Configuration for Ulysses
The Boeing-developed Inertial Upper Stage (IUS), an unpiloted, upper-stage booster rocket, could be launched from the Titan 34D or Titan IV expendable launch vehicles or from the Space Shuttle. In 1989, the IUS sent the Magellan and Galileo spacecraft to Venus and Jupiter, respectively. In 1990 it sent the Ulysses spacecraft to the sun. A typical Boeing IUS mission launched from a Titan IVB involves IUS separation from the rocket's second-stage booster approximately nine minutes into flight. The IUS takes over responsibility for the remainder of the powered portion of the flight. For the next six hours and 54 minutes, the IUS autonomously performs all functions to place the spacecraft into its proper orbit, some 22,000 miles above the Earth. The first IUS rocket burn occurs a little over one hour into the IUS booster flight. The IUS second solid rocket motor ignites about six-and-a-half hours into the flight, followed by a coast phase, and then, separation of the spacecraft. Between 1983 and 2001, the Boeing Inertial Upper Stage successfully deployed more than 20 critical U.S. defense and interplanetary satellite missions into high Earth orbits.
Add to lightbox
Add to cart
Unique identifier
BI25946
Boeing ID
r4968
Size
3000px × 5100px 43MB
License type
RM
Keywords
1980s
factories
grid patterns
ground shots
head on views
high-tech / advanced
historic production status
interiors
large
launch vehicles
manufacturing
nobody
other livery
photos
rockets
scanned from film negative
space
text
white
yellow
