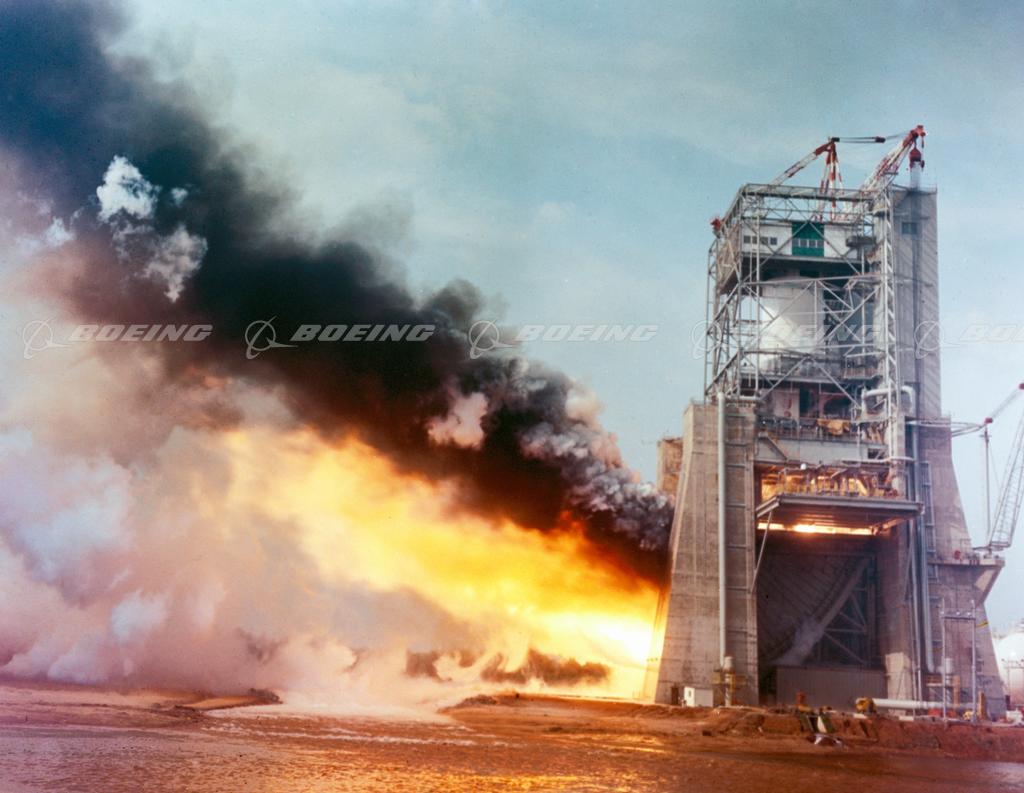

Saturn IV Rocket Test
Even while Gemini spacecraft were flight-testing the techniques for journeys to the moon, the hydrogen-fueled S-IVB stage built by McDonnell Douglas for the Saturn V launch vehicle was being designed and tested. S-IVB pushed the Apollo spacecraft into Earth orbit and then re-ignited to accelerate the spacecraft toward the moon. The power of the S-IVB came from super-cold liquid oxygen kept only a bulkhead away from even colder liquid hydrogen and brought together in a rocket engine producing 200,000 pounds of thrust. S-IVB performed Apollo’s first trans-lunar insertion when it ignited to push Apollo 8 toward a Christmas Eve 1968 rendezvous with the moon. It repeated its flawless performance in the continuing series of Apollo lunar flights, most notably the Apollo 11 mission which was highlighted by man’s first landing on the moon on July 20, 1969.
Add to lightbox
Add to cart
Unique identifier
BI221839
Boeing ID
k12517
Type
Size
5100px × 3950px 57MB
License type
RM
Keywords
1960s
Apollo Program
blue
day
engines
exteriors
fire
firing
full body views
gray
ground shots
historic production status
launch vehicles
nobody
orange
photos
power
propulsion systems
rocket engines
rockets
scanned from film negative
smoke
space
testing
