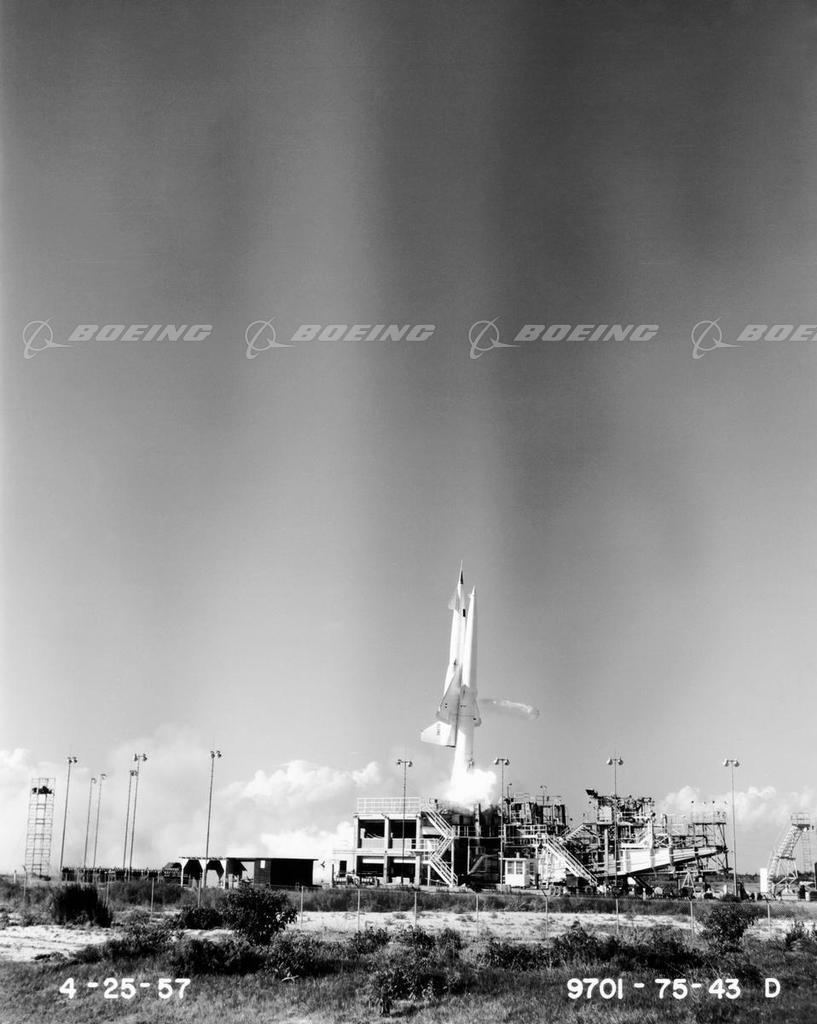

Navaho G-26 Flight 3 Launch
In October 1945, the Army Technical Services Command asked U.S. aeronautical corporations to design a guided missile. North American Aviation proposed the MX-770, the Navaho -- a 500-mile-range missile, which made many key technological breakthroughs. The X-10 Navaho test drone was the first turbojet-powered vehicle to reach Mach 2, and the first aircraft to fly a complete mission under inertial (computerized) guidance. Phase two of the nuclear Navaho development program was the G-26 drone missile (shown here), which would prove the vertical launch system. The G-26 required the development of the largest ramjet engines built, an auxiliary power unit to power the missile's electronics and hydraulics, and a more effective autonavigator unit, the N-6 or NAVAN (North American Vehicle Auto Navigation). The Navaho program was canceled in July 1957 when, after extensive testing at Cape Canaveral, Florida, the Atlas ICBM was chosen over winged missile designs.
Add to lightbox
Add to cart
Unique identifier
BI229911
Boeing ID
9701-75-43d
Type
Size
2295px × 2874px 6MB
License type
RM
Keywords
1950s
Cape Canaveral Air Force Station
Cape Kennedy
clear skies
copy space
day
exteriors
full body views
ground shots
historic production status
launch sites
launches
military
missiles
Navaho II
other livery
photos
power
research/experimental
smoke
Space Launch Complex LC-9
sunshine
testing
text
X-10 Navaho
