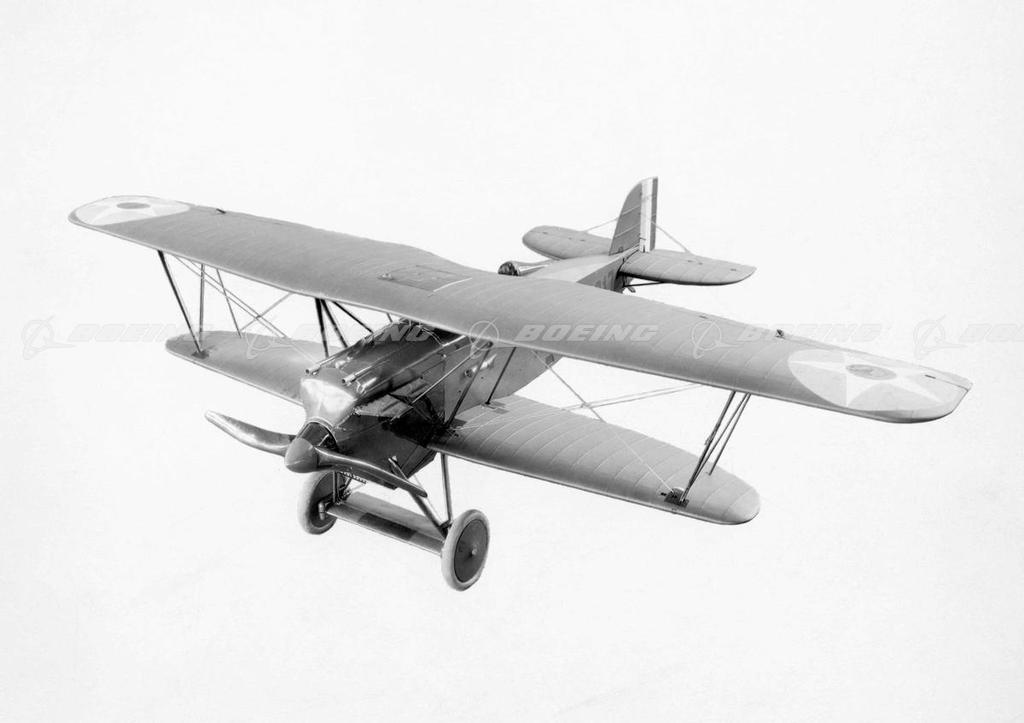

Model of Boeing PW-9
The Model 15 (PW-9) was the first successful Boeing-designed fighter and established the company as a major American builder of military aircraft. Its internal bracing was arc-welded tubing rather than the spruce and wire used in older biplanes. However, it still had wooden spars and ribs. Boeing also introduced the first oleo shock absorbers for aircraft. It was designated PW-9 (for "pursuit water-cooled design 9) by the Army and designated FB-1 by the Navy. Between 1923 and 1928, Boeing built 157 PW-9/FBs in different versions, as well as 77 derivatives as NBs (Navy training planes). The NBs were 4 feet longer than the PW-9/FBs and powered by either 180- or 200-horsepower engines. Boeing sold five NBs to Peru.
Add to lightbox
Add to cart
Unique identifier
BI222285
Boeing ID
709b
Type
Size
5058px × 3571px 17MB
License type
RM
Keywords
1920s
airplanes
biplanes
copy space
cutouts
fighters
full body views
historic production status
left front views
military
military livery
nobody
photos
propeller planes
trainers
viewed from above
vintage / retro
