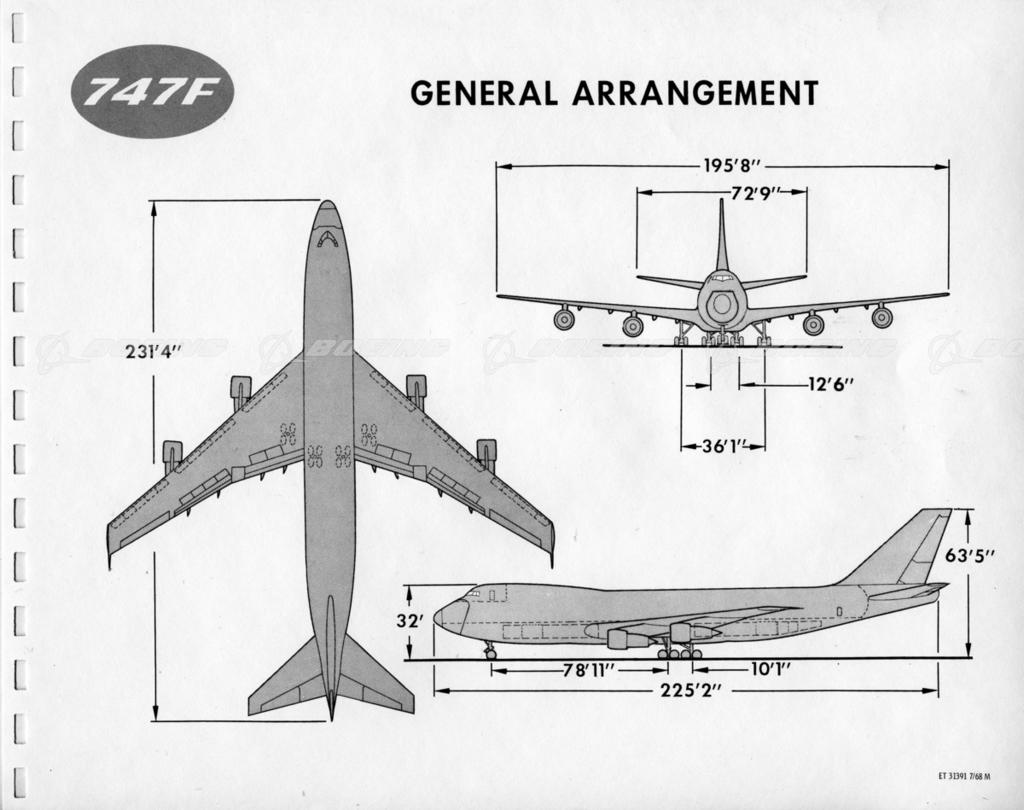

General Arrangement BOEING 747 F Freighter
"BOEING 747 F Freighter." Brochure D6-13920 R1, 78 pages (printed one side only), issued June 1969 by the Commercial Airplane Division, Everett [Washington] Branch of The Boeing Company; page 6 "GENERAL ARRANGEMENT," three-view drawing with basic dimensions for Boeing Model 747-100F series aircraft. [Page 6 of 78.]
1969
Add to lightbox
Add to cart
Unique identifier
BI429234
Boeing ID
D6-13920R1_6-1969_pg6_747F_General_Arrangement
Type
Size
3217px × 2545px 6MB
License type
RM
Keywords
aircraft
airplanes
Boeing
commercial
one
Restrictions
