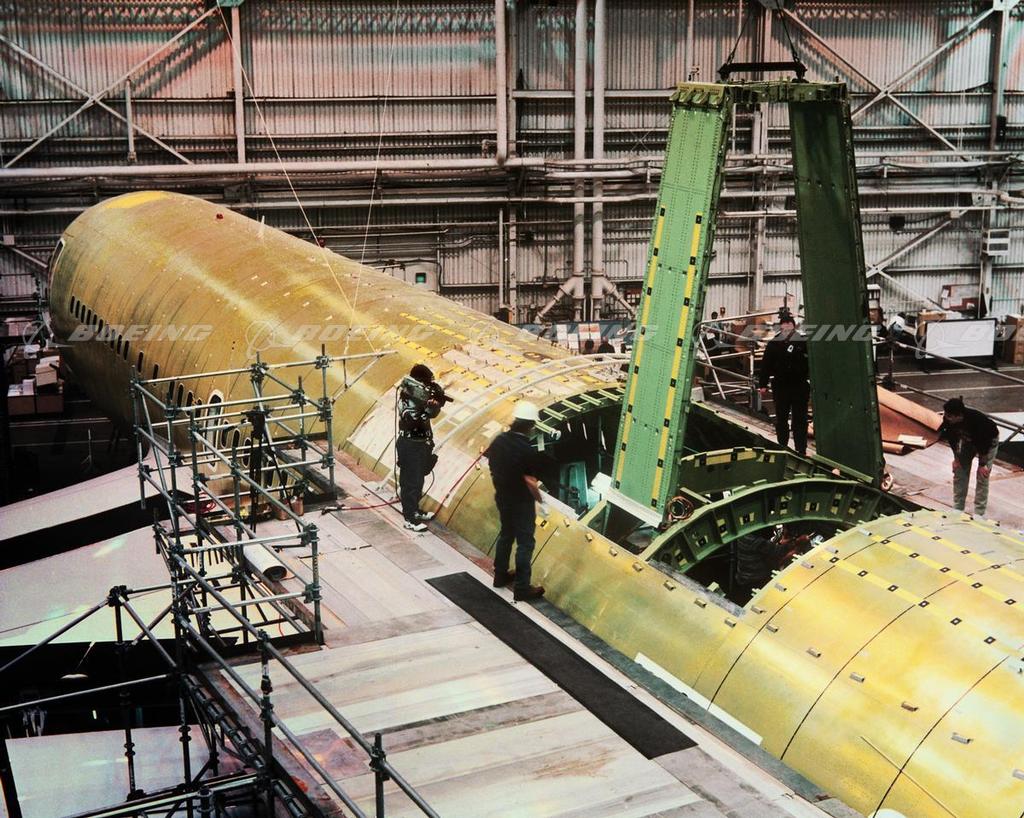

E-767 AWACS in Factory

The Boeing Airborne Warning and Control System (AWACS) is the world's standard for airborne early warning and control (AEW&C) systems. This surveillance system includes a flexible, multi-mode radar, which enables AWACS to separate maritime and airborne targets from ground and sea clutter returns that limit other present-day radar. Its radar has a 360-degree view of an area, and at operating altitudes it can detect targets more than 320 kilometers (200 miles) away. AWACS mission equipment can separate, manage and display these targets individually on situational displays.

Add to lightbox

Unique identifier BI219154

Boeing ID 98g00701

Type Image

Size 7576px × 6054px 131MB

License type RM

currently in production

electronic warfare

factory workers

half-length views

left rear views

occupations and work

stairs, lifts and ladders

structural systems

viewed from above
