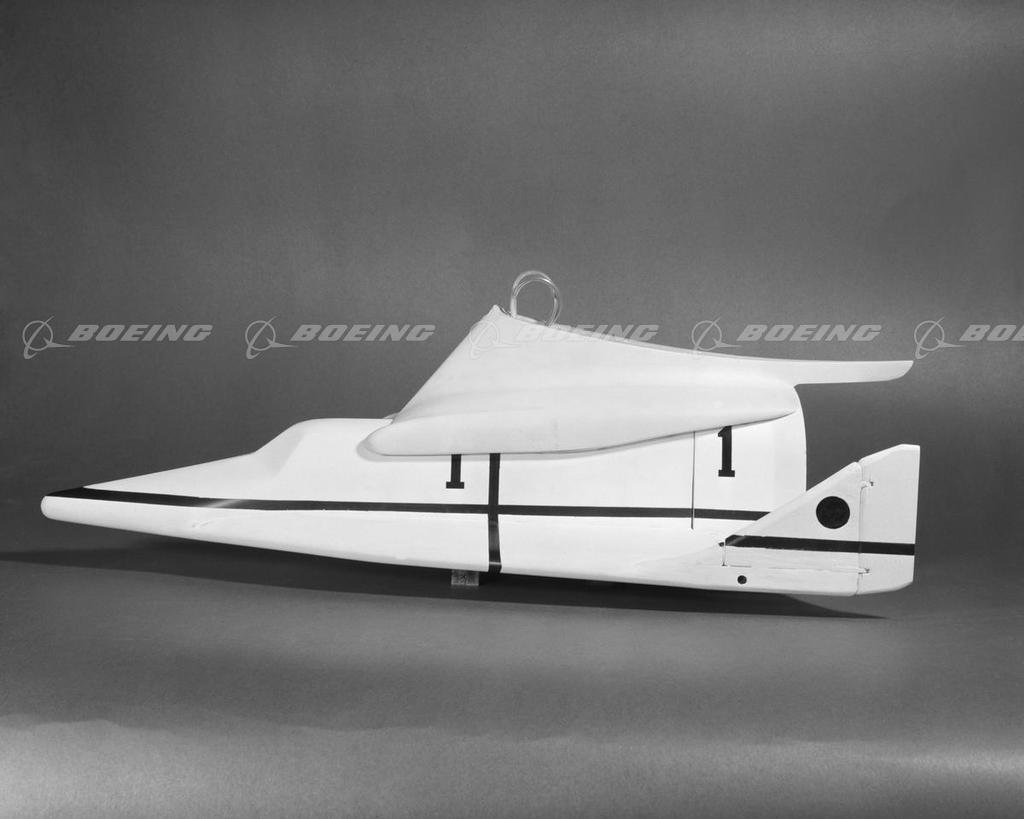

Dyna-Soar Scale Model

In the late 1950s, Boeing engineers used rocket-based technology to design the Dyna-Soar, a manned, reusable space vehicle that would glide through the Earth's upper atmosphere after being lifted into orbit by a rocket. Dyna-Soar reached the mock-up stage before the project was canceled in 1963, before the prototype was built. Many aspects of the delta-winged space vehicle were similar to the space shuttles that orbited the Earth some 30 years later.
 Add to lightbox
 Add to cart
Unique identifier BI22002
Boeing ID a41743
Type Image
Size 5998px × 4798px   27MB
License type RM
Keywords
1960s
close-ups
Conceptual aircraft, designed, but never produced
copy space
full body views
futuristic
ground shots
high-tech / advanced
interiors
left side views
nobody
photos
scanned from film negative
space
spacecraft
text
vests
