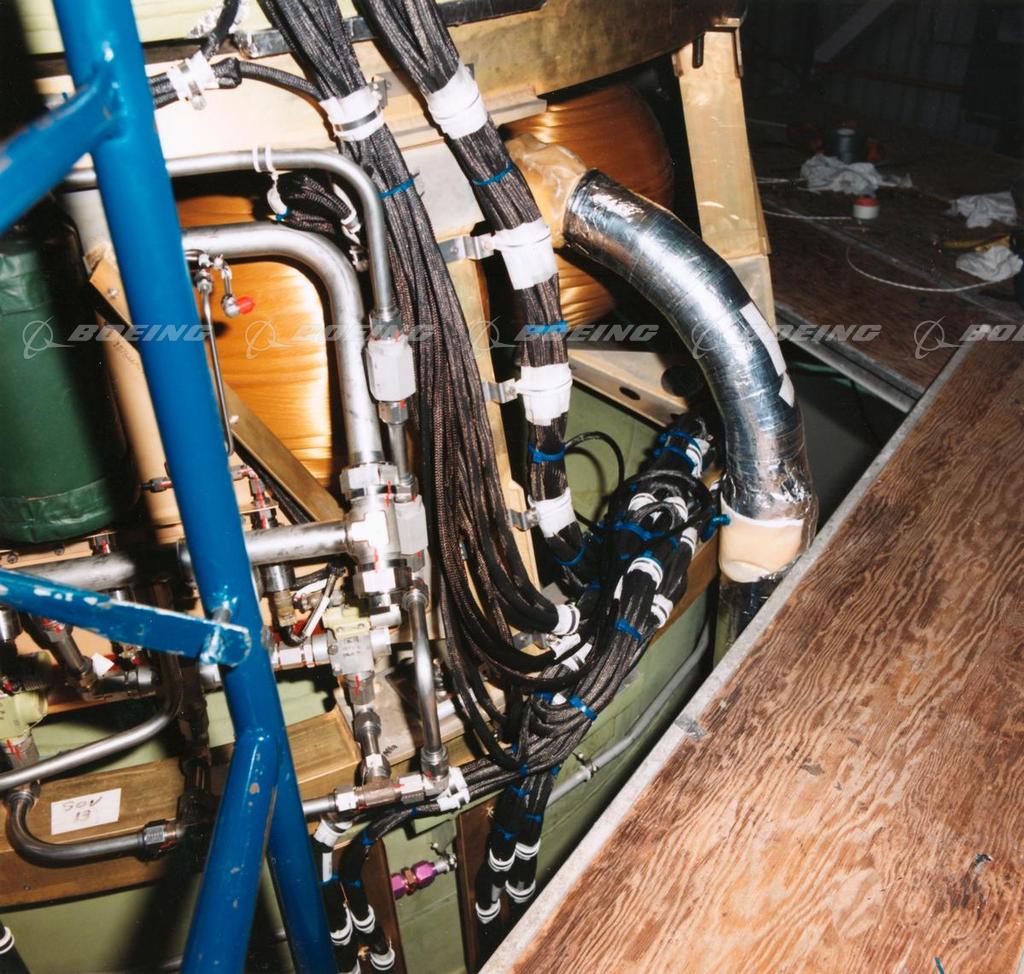

Delta Clipper Intertank Assembly Detail

The Delta Clipper was the first spacecraft to use a Russian aluminum-lithium liquid oxygen tank and the U.S.-manufactured graphite epoxy liquid hydrogen tank and main engine and valve. Though the program was cancelled, the technologies incorporated into building the Delta Clipper have paved the way for future spaceplane technologies.
 Add to lightbox
 Add to cart
Unique identifier BI229627
Boeing ID dcx_as12
Type Image
Size 2340px × 2224px   14MB
License type RM
Keywords
1990s
close-ups
detail views
fuel systems
ground shots
high-tech / advanced
historic production status
interiors
launch vehicles
manufacturing
nobody
one of a kind aircraft
photos
propulsion systems
prototypes
rockets
space
spacecraft
viewed from above
wires and cables
