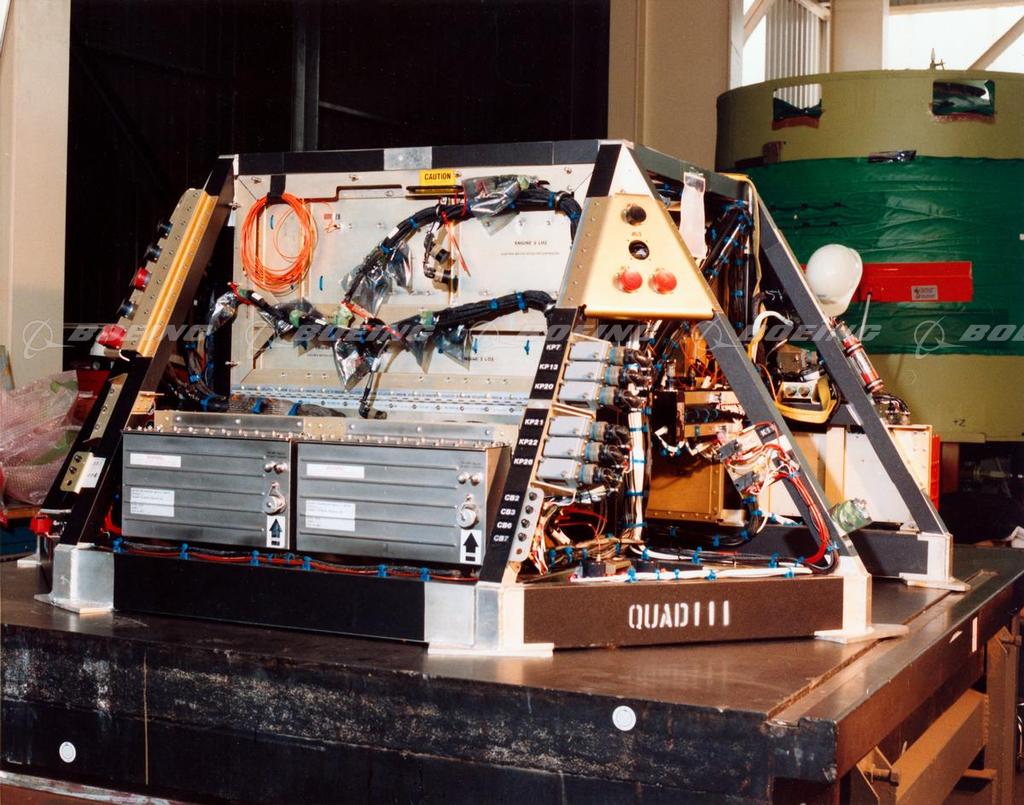

Delta Clipper Avionics Rack

The Delta Clipper, or DC-X, was developed by McDonnell Douglas for the Ballistic Missile Defense Organization (BMDO) Single Stage Rocket Technology Program in the early 1990s to prove the practicality, reliability, operability and cost efficiency of a reusable, single-stage-to-orbit flight vehicle. The DC-XA evolved from the DC-X. The DC-X's airframe was extensively modified by replacing existing systems with a composite hydrogen tank; a Russian-built aluminum-lithium alloy liquid oxygen tank; a composite intertank to connect the hydrogen and oxygen tanks; and an auxiliary propulsion system which included a composite liquid hydrogen feedline, a composite liquid hydrogen valve, a liquid-to-gas conversion system reaction control system, and a Russian auxiliary power unit providing redundant hydraulic power for flight control.
 Add to lightbox
 Add to cart
Unique identifier BI229621
Boeing ID dcx_as09
Type Image
Size 2835px × 2229px   18MB
License type RM
Keywords
1990s
close-ups
day
ground shots
high-tech / advanced
historic production status
interiors
launch vehicles
manufacturing
nobody
one of a kind aircraft
photos
prototypes
rockets
space
spacecraft
text
wires and cables
