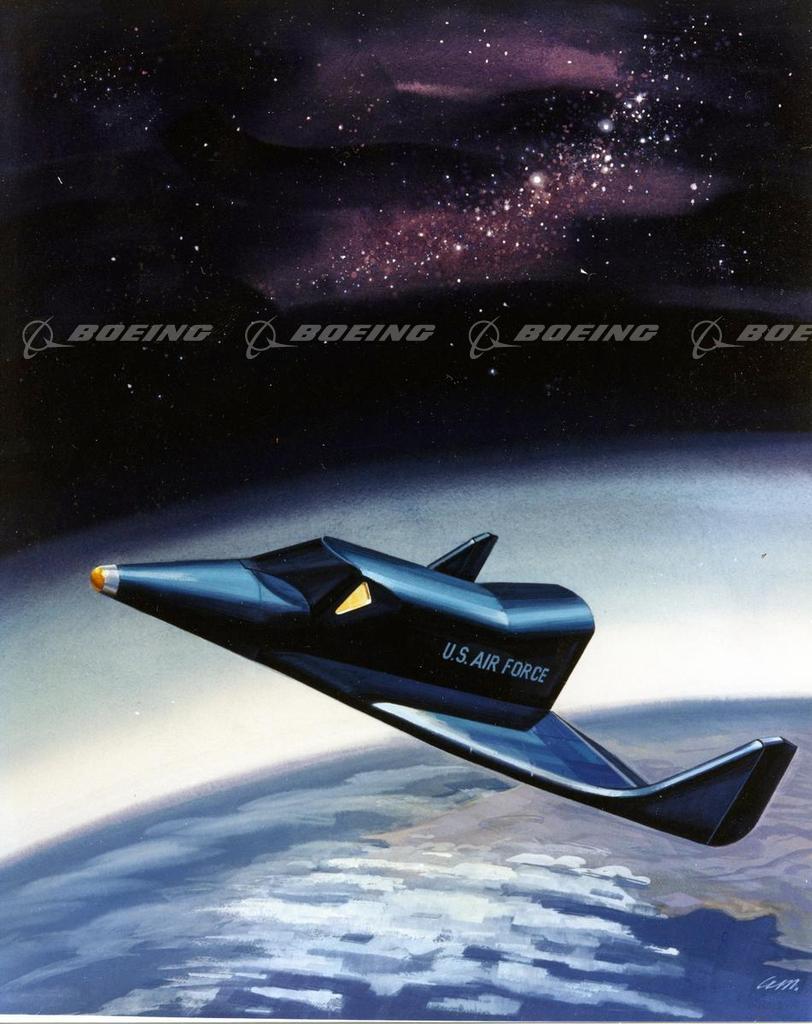

Boeing X-20 Dyna-Soar in Orbit
The Boeing Dyna-Soar was designed to be a 35.5-foot piloted vehicle, had a sharply swept delta 20.4-ft-span wing, and was shaped remarkably like the shuttles of today. Constructed of super alloys, with a graphite and zirconia composite nose cap, the X-20, after reentry, was designed to land on a dry lake bed using three retractable struts. Although the X-20 reached the mockup stage and $410 million was spent on its development, on December 10, 1963, the program was canceled by the government. Congress directed that X-20 funding be diverted to the Manned Orbiting Laboratory, which used McDonnell-built Gemini capsules.
Add to lightbox
Add to cart
Unique identifier
BI44541
Boeing ID
2A179530
Type
Size
2372px × 2992px 6MB
License type
RM
Keywords
1960s
black
Boeing
Conceptual aircraft, designed, but never produced
copy space
delta wings
full body views
illustrations
left front views
manned spacecraft
military livery
nobody
orbiting
research/experimental
