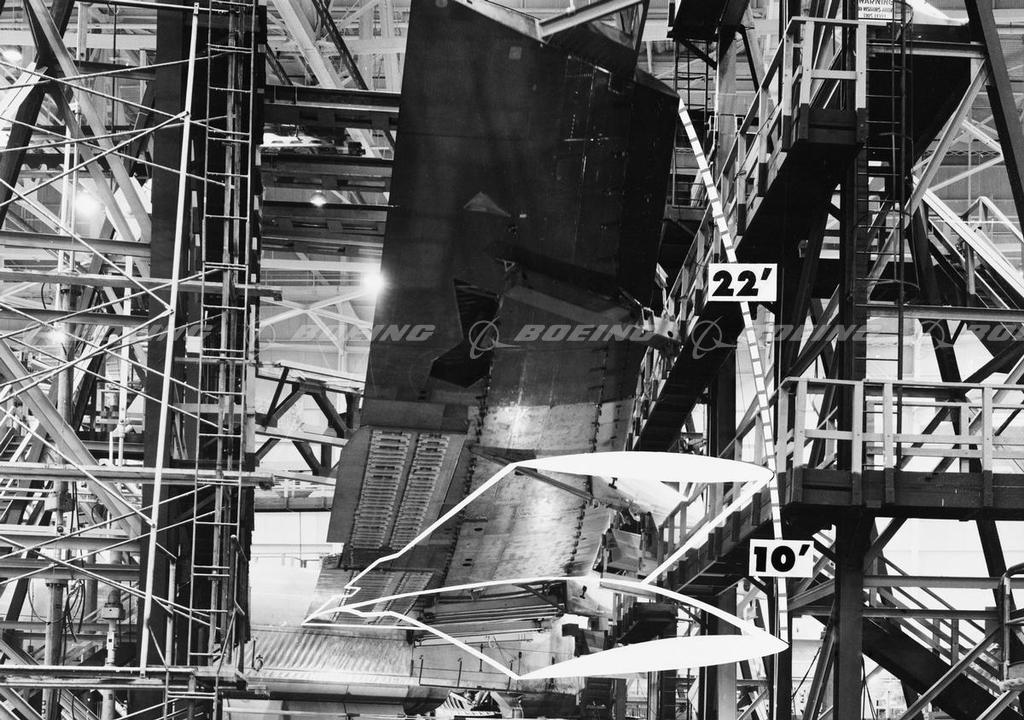

B-52A Stratofortress Static Wing Test

Static testing validates the static strength of aircraft by applying external loads to the airframe. Results from the test are compared with analytical predictions to validate the design.
 Add to lightbox
 Add to cart
Unique identifier BI220507
Boeing ID 152289
Type Image
Size 4783px × 3366px   15MB
License type RM
Keywords
1950s
airplanes
bombers
close-ups
exteriors
grid patterns
ground shots
jets
manufacturing
military
nobody
out of production
photos
stairs, lifts and ladders
static wing testing
structural systems
testing
text
viewed from below
vintage / retro
