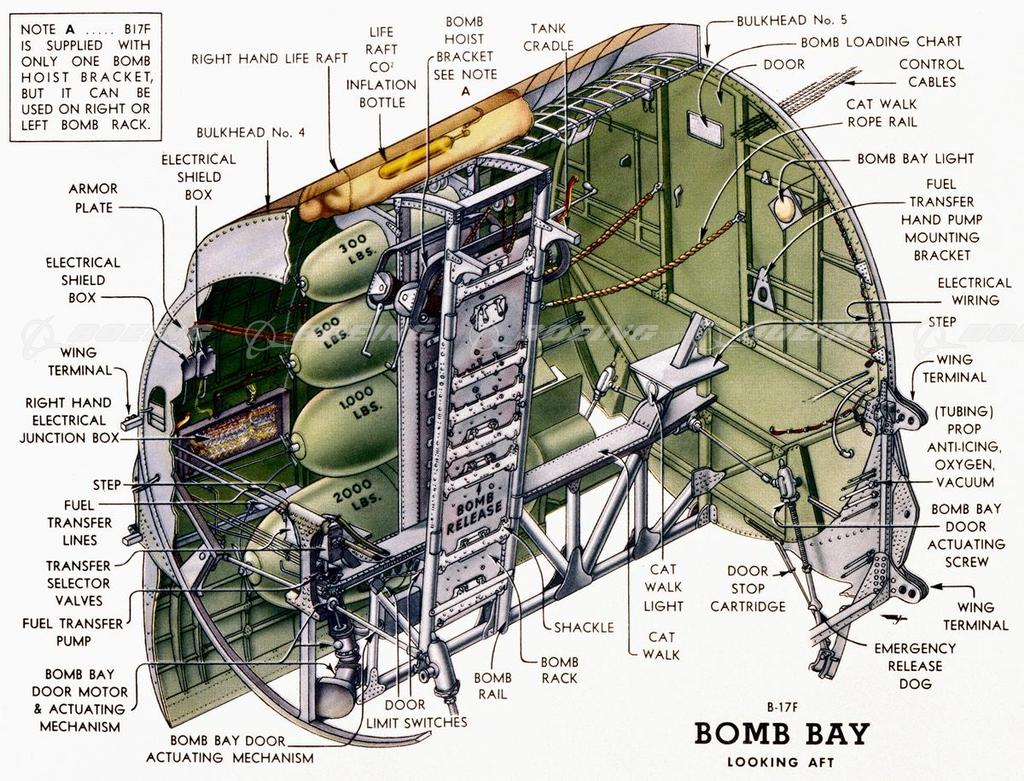

B-17F Flying Fortress Bomb Bay
The heavily armored B-17F was distinguished by its molded plexiglass nose assembly and wide paddle-blade propellers. It could fly farther than previous B-17s because of the 1,000 gallons of additional fuel stored in self-sealing tanks. Under the Boeing-Douglas-Vega nationwide, collaborative production effort, Boeing built 2,300 B-17Fs, Douglas 600; and Lockheed (Vega), 500.
Add to lightbox
Add to cart
Unique identifier
BI219506
Boeing ID
hs22c
Type
Size
2809px × 2142px 17MB
License type
RM
Keywords
1930s
airplanes
ammunition/weapons systems
bomb bays
bombers
close-ups
cutaway views
detail views
gray
green
historic production status
illustrations
military
monoplanes
nobody
POINT OF VIEW
propeller planes
text
viewed from above
