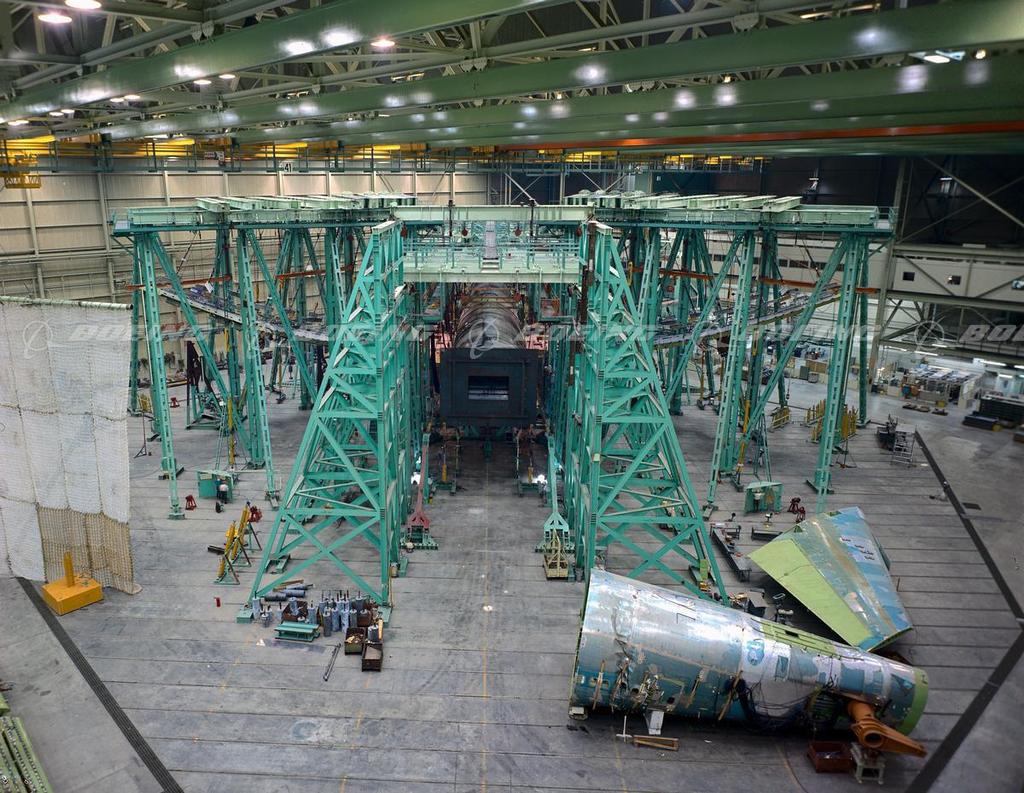

747 Wing Static Test
The static test is one of the most dramatic moments during the testing of an all-new commercial jetliner before it can carry passengers. While on the ground, the wings of the new plane are gradually bent up until they snap. For certification, the wings must withstand loads up to 1.5 times, or 150 percent, of the highest aerodynamic load that the jet could ever be expected to encounter. Boeing has tested wings to the breaking point, to demonstrate that the wings of its jetliners have a safety margin greater than required and to validate the analytical tools that engineers use in designing new jets.
Add to lightbox
Add to cart
Unique identifier
BI228169
Boeing ID
k18000
Type
Size
5100px × 3950px 57MB
License type
RM
Keywords
1960s
airplanes
commercial
commercial passenger planes
full body views
gray
green
ground shots
hangars
head on views
interiors
jets
lifting
manufacturing
nobody
out of production
photos
power
safety
scanned from film negative
structural systems
testing
unpainted
